ABOUT NETIO PRODUCTS A.S.
The NETIO products company is a Czech producer of networked power
sockets (can be controlled over LAN & WiFi).
Main focus is professionals & business usage (B2B).
A typical user is a SI (System Integrator), IT department
or Portal service provider. in various industrial projects.
1) Remote control & Restarting (power saving projects)
2) AV Drivers (Digital signage)
3) Ready for integration (M2M API – Open API)
4) Power Analysis
2
PRODUCTS
NETIO 4
NETIO 4All
PowerBox 3Px
NETIO PowerPDU 4C
NETIO PowerPDU 4PS PowerCable family 101x PowerDIN 4PZ
3
NETWORKED POWER SOCKETS
Devices to measure energy consumption and
switch ON / OFF the power socket over the network.
LAN
• Web
• Buttons
• Mobile App WiFi
• NETIO Cloud
• Industrial devices
• M2M (Open API)
OFF
230V / 50Hz
80W / 0.34A / TruePF = 0.55
137,29 kWh ON
4
Smart power sockets with Open API (M2M)
NETIO is unique by so many M2M protocols
Each protocol is used in different business segment
Industrial projects
IT (energy / remote restarts / power consumption)
Cloud oriented solutions
SSL
Professional
product =
security / SSL
SSL SSL SSL SSL SSL
5
Why is good to have Open API?
6
NETIO Cloud
is new
standard
feature..
7

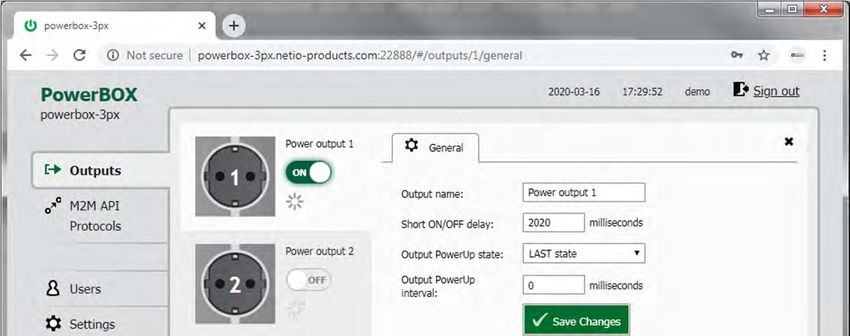

PowerBOX 3Px: Control output by WEB
• On
• Off
• LAST
Unique per output
Switch output On
from the device
website
8
PowerBOX 3Px
• PowerBox 3PF
DE schuko sockets, 230V / 16A
• PowerBox 3PE
FR sockets, 230V / 16A
• PowerBox 3PG
UK sockets, 230V / 13A
9
PowerBox 3Px photos Each output can be
switched On/Off
individually
Optional accessory: MK1 PowerBOX
Easy wall montage Button
104x LED Output
state indication
Gray functions are
in PowerPDU 4C
only.
Industrial features

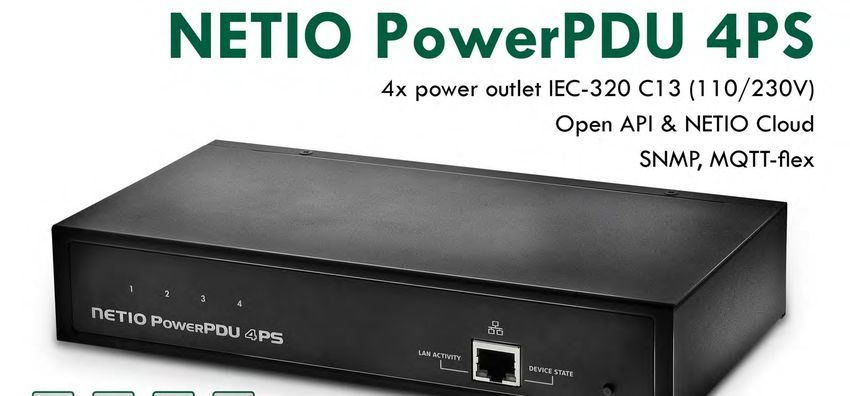

11PowerPDU 4PS
Each output san be switched
On/Off individually Power-Up sequence
Wide temperature range: -20 to +75°C
12RACK MOUNTS

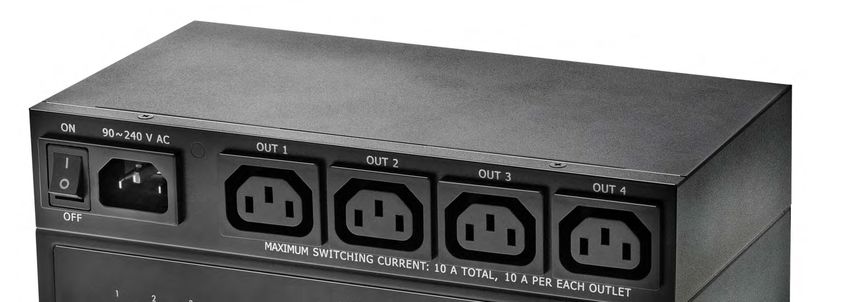

NETIO PowerPDU 4C
NETIO PowerPDU 4PS
13LAN
14RACK MOUNT RM1 + RM2
RM1
2x RM2
1516
17
RACK MOUNT RM5
18NETIO Mobile2 app
Configure & read device configuration from NFC
LAN discover, Control outputs of all NETIO devices on the LAN.
MOBILE
NETIO Cloud support coming soon.. APPLICATION
Main menu LAN discover Control outputs NFC menu NFC Diagnostic
1920

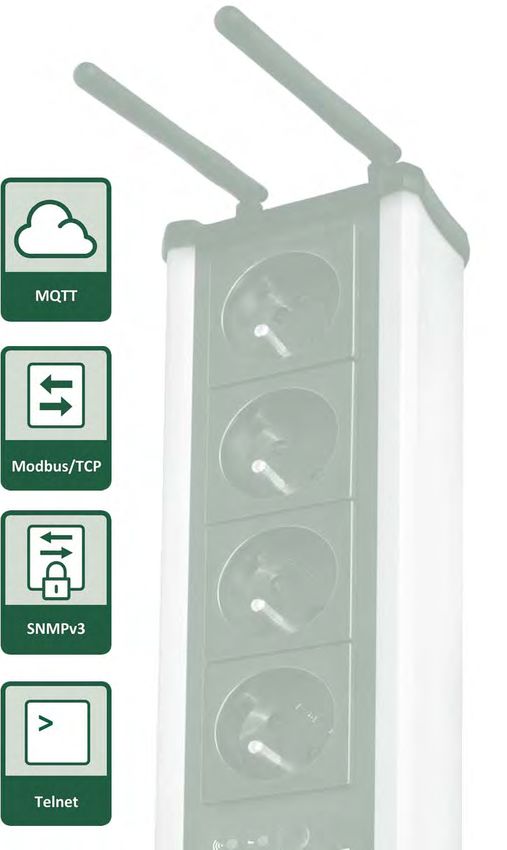

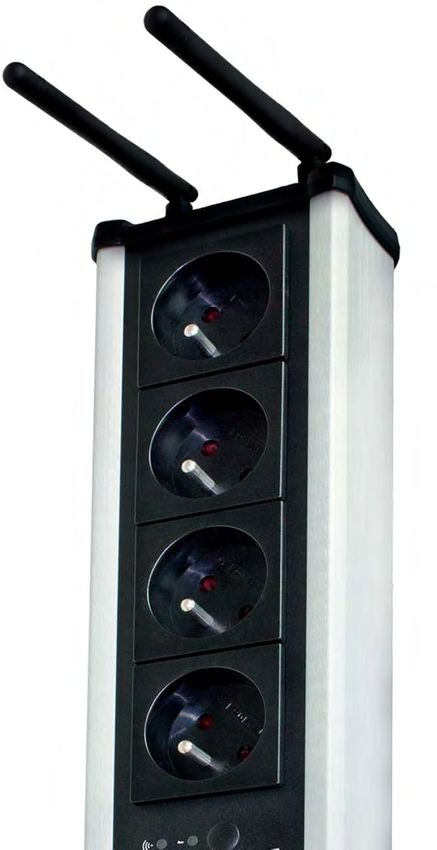

PowerDIN 4PZ details
21NETIO clouds strategy OPEN API
Your own • MQTT-flex
cloud
• HTTP based protocols
NETIO CLOUD
• 3 years „free of charge“
• Later: 5€ / device / year
CLOUD • Remote On/Off only
• WEB + Mobile access
• April 2020
LAN
NETIO HEXIO CLOUD
Open API • Graphs, metering
(per device) NETIO HEXIO • Analyze in the cloud
• Device group API
> CLOUD
UDP
LUA scripting
{.json} • 1 month for free
language XML JSON URL API
SNMP v1/v2 MQTT Telnet Modbus/TCP Push XML Push JSON
REST HTTP(s) REST HTTP(s) HTTP(s)
• June 2020
22NETIO CLOUD service
5€ / year / Free for first
device 3 yearsIndustrial
NETIO PowerCable xxx IT (REST)
Cloud MQTT
IQRF
OEM
PowerCable xxx 101x
CH = 101J DE = 101F
C13 = 101S FR = 101E
US = 101B UK = 101G
24Industrial
NETIO PowerCable xxx family IT (REST)
Cloud MQTT
IQRF
OEM
LUA scripting
REST language IQRF
Modbus/TCP MQTT
JSON / XML network
PowerCable Modbus PowerCable REST PowerCable MQTT PowerCable IQRF PowerCable OEM
Model name PowerCable Modbus 101F PowerCable REST 101F PowerCable MQTT 101F NETIO PowerCable 901F Any
Network WiFi WiFi WiFi IQRF (868 MHz - LPWAN) WiFi
Power measurement Yes (V, A, W, kWh, TPF, Hz) May be
REST XML, JSON
Protocol 1 Modbus/TCP MQTT (plain + ssl) IQRF DPA2 Any
(http only)
HTTP(s) push
Protocol 2 Telnet URL API - Any
JSON + XML
Web interface Yes Yes Yes No (just IQRF IDE) Yes
Power plug types DE, FR, CH, IEC-320 C13/C14, UK DE, FR Any
On the stock 10 / 2018 05 / 2019 06 / 2019 03 / 2019 Tomorrow
2526
>
Telnet
27Push XML
{.json}
Push JSON
28NETIO Mobile2 app support NFC
NFC NFC
Android mobile phone pre config
with NFC
Scan WiFi networks in
the mobile.
Choose SSID, write
WLAN password.
Configure PowerCable
with NFC by taping.
Wait for LED indication,
installed..
Installed & connected to WiFi within 60 seconds
29Industrial
IT (REST)
Cloud MQTT
IQRF
OEM
868 MHz radio
MESH network
30NETIO products: Physical features
LAN WiFi / IQRF Switched Metered DI Button(s) / Industrial Power-Up
Output Type Power NFC
(RJ45) Antenna 868MHz outputs outputs Inputs LED features state
ZCS,
PowerPDU 4C 2x - - C13 4 4 - 110/230V / 10A 4/4 - Yes
RS232
PowerPDU 4PS 1 - - C13 4 - - 110/230V / 10A 1/4 - ZVS Yes
Terminal
PowerDIN 4PZ 1 Int. - 4 2 2x (S0) 110/230V / 16A 1/4 Yes ZCS Yes
block
PowerBOX 3PE 1 - - FR 3 - - 230V / 16A 1/0 - ZVS Yes
PowerBOX 3PF 1 - - DE 3 - - 230V / 16A 1/0 - ZVS Yes
PowerBOX 3PG 1 - - UK 3 - - 230V / 16A 1/0 - ZVS Yes
PowerCable Modbus 101E - Int. - FR 1 1 - 230V / 16A 1/1 Yes ZCS Yes
PowerCable Modbus 101F - Int. - DE 1 1 - 230V / 16A 1/1 Yes ZCS Yes
PowerCable Modbus 101J - Int. - CH 1 1 - 230V / 10A 1/1 Yes ZCS Yes
PowerCable Modbus 101G - Int. - UK 1 1 - 230V / 13A 1/1 Yes ZCS Yes
PowerCable Modbus 101S - Int. - C13 1 1 - 110/230V / 10A 1/1 Yes ZCS Yes
PowerCable IQRF 901E - - Yes FR 1 1 - 230V / 16A 1/1 - ZCS -
PowerCable IQRF 901F - - Yes DE 1 1 - 230V / 16A 1/1 - ZCS -
NETIO 4 DE 1 Fixed - DE 4 - - 230V/15A 4/4 - - -
NETIO 4 FR 1 Fixed - FR 4 - - 230V/15A 4/4 - - -
NETIO 4All DE 1 Ext. - DE 4 4 - 230V/15A 4/4 - - -
NETIO 4All FR 1 Ext. - FR 4 4 - 230V/15A 4/4 - - -
31NETIO products: Firmware & communication features
Modbus/TCP
Http(s) push
XML / JSON
MQTT-flex
URL-API
HTTPs
Telnet
SNMP
MQTT
JSON
Scheduler IP Watadog
XML
Web
Lua scripting
function function
PowerPDU 4C Yes Yes Yes v1/v3 - -
PowerPDU 4PS - planed - - v1 - -
PowerDIN 4PZ - planed - - v1 -
PowerBox 3Px (E,F,G) - planed - - v1 - -
PowerCable Modbus 101x - planed - - - - - - - - -
PowerCable REST 101x - planed - - - - - - - -
PowerCable MQTT 101x - planed - - - - - - - - -
PowerCable IQRF 901x - - - - - - - - - - - - - -
NETIO 4 DE Yes Yes Yes v1/v3 - -
NETIO 4 FR Yes Yes Yes v1/v3 - -
NETIO 4All DE Yes Yes Yes v1/v3 - -
NETIO 4All FR Yes Yes Yes v1/v3 - -
32NETIO products = Industrial & Professional products
What is the INDUSTRIAL DEVICE 1) Technical support + documentation & manuals 2) Opened API (one or more documented protocols) 3) Protocol compatibility (today even tomorrow) 4) We provide 2 Years warranty as standard + extension is available 5) Simple FW upgrade over the web (web fw archive) 6) No output click-click pulse during the FW upgrade / device reboot (IOC in NETIO) 7) Temperature range -20 to 75°C (B2C devices are certified for 25°C only…) 8) Defined precision of values measurement (PowerCable
ZCS Effect to relay contacts
ZCS/ZVS is NETIO technology to protect relay contacts
for more than 300 relay cycles.
You can see 2 relays after switching 60W power
adaptors in many cycles.
ZCS
Standard switching solution (Zero Current Switching)
35Wiki.netio-products.com
NETIO Wiki
for
programmers
36NETIO ANxx Application Notes
Lua scripting Lua scripting Lua scripting Lua scripting
language language language language
URL Periodic
Email scheduler
input cycling
Mobile App
button
NETIO AN04: Remote power socket control by URL NETIO AN08: Cyclic traffic lights in Lua according to a
NETIO AN05: Lua email alert when power socket state changes NETIO AN07: Scheduler in Lua according to a defined table
(http get handled in Lua script) defined table.
Temperature STE2
Lua scripting Lua scripting Lua scripting
SNMP v3 HTTP get probe WiFi / LAN thermometer language language language
URL API
WiFi AP XML PING PING
polling detection detection
DI
Digital Input
Temperature value available in .xml file.
Lua script downloads it periodically (HTTP).
Value is parsed and analyzed.
Additional cooling switched ON when the
temperature exceeds the limit.
NETIO AN11: SNMP management of 110/230V power NETIO AN19: URL M2M API (http GET) protocol to control NETIO AN13: STE2 thermometer (HW group) switches NETIO AN25: IP WatchDog 2 from 10 - list of monitored devices, NETIO AN09: PING based IP Watchdog - at least 1 of 2
outlets from the Linux command line NETIO power sockets/outlets NETIO sockets based on temperature failure indication by power output (Lua script) devices available (Lua script)
JSON URL API
HTTP(s) Modbus/TCP Modbus/TCP
HTTP(s)
Node-RED Node-RED
NETIO AN21: JSON HTTP(s) protocol to control NETIO smart NETIO AN29: Node-RED example of URL API NETIO AN27: Modbus/TCP with NETIO 4x NETIO AN32: Node-RED example of Modbus/TCP
power sockets communication with NETIO 4x Control and measure LAN power sockets communication with NETIO 4x and PowerCable
37LAST SLIDE: NEXT STEP
