U.S. C O M M I S S I O N O F F I N E A R T S P R E S E N TAT I O N | A P R I L 1 8, 2 01 9
World War One Memorial
Response to Walkway, Lighting, & Sculpture Fountain Comments
Scu lpto r
SA B I N H OWA R D
1
W H E R E W E A R E I N T H E P R O C E S S & W H AT W E H AV E H E A R D
JULY 2018 OCTOBER 2018 NOVEMBER 2018 FEBRUARY 2019
REVISED CONCEPT SCULPTURE DETAILING, INTERPRETIVE POOL/WALKWAY, SITE ACCESSIBILITY, LIGHTING, FURNISHINGS AND MATERIALITY
STRATEGY, PLANTING SCULPTURE REFINEMENTS
APPROVAL OF FREESTANDING
GUIDANCE AND DIRECTIVES APPROVAL WITH DIRECTIVES GUIDANCE AND DIRECTIVES
SCULPTURE FOUNTAIN AND U-SHAPED
• Preference for the cantilevered sculpture fountain • Endorsement of Island Walkway configuration with • Requested clarity in the proposed lighting strategy to
WALKWAY CONCEPT
paired with the monolithic stone for the west cascade further study of the materials and scale of the scrim define features & frame spaces while also balancing
• Supported the general interpretive strategy but • Praised refinements to reduce the length and enhance technical requirements for safety and access
CLUSTER TOPICS REQUESTED TO
requested simplification the historical accuracy, requested that the proposed • Requested technical information for illumination
SIMPLIFY REVIEW PROCESS
• Supported the planting strategy revised maquette (anticipated April 2019) include the levels, color temperature and effect on surrounding
surrounding stone wall and adjacent water elements buildings
• Refinement of Detailing of the pool and
• Endorsement of the proposed accessibility • Support for the low entry signage integral to the
sculpture
improvements existing curbs
• Inscriptions and interpretive elements
• Suggested a single finish for the support of the
• Selection of stone and other materials
sculpture rather than multiple to further impart the
• Landscape plans and specifications
sense of the sculpture being firmly seated within the
• Systems of signage and lighting
monolithic stone wall
• Supported the use of the dark stone for the walkway
and bridge
• Advised that shifting the bridge southward would
reinforce the aesthetic of the existing landscape,
improve circulation, and strengthen the visual
connection to the sculpture wall from the Pershing
Memorial
2
P R E S E N TAT I O N C O N T E N T
S U M M A R Y O F P R E V I O U S / U P C O M I N G P R E S E N TAT I O N S
• Memorial V i si on: Pr i m ar y and Su p p o r t i n g Co mme mo r a t i ve E le me nt s (Oc tob er 2 018 )
• Pool & Walk way + Acce ss Im p rove me n t s + Scu lpt u re Re f i n e me n t s (N ovem b er 2 018 )
• Concept Li ghti ng, Fu r ni shi ng a n d Fi n i s h e s ( Fe b r u a r y 2 01 9)
• Response to Wal k way, L i ghti n g , & Scu lpt u re Fou n t a i n Co mme n t s (Ap r i l 2 019)
• Interpret at i on & D e tai l i ng ( May 2 01 9 te n t a t i ve)
C FA M E E T I N G O B J E C T I V E S (4 / 1 8 /2 01 9)
Ap p roval of a dj uste d wal k way co n f i gu r a t i o n
Ap p roval of p ropose d l i ghti ng s tr a te gy
Ap p roval of scul pture fou ntai n d e t a i li n g re f i n e me n t s a n d co mp o s i t i on
D irect ion and approval of Scul pt u re Fou n t a i n f i gu re h e i g h t s
P R E S E N TAT I O N O U T L I N E
• Wal kway
- Propose d Br i dge Str ate gy
- Circula ti on Se q ue nce
• Li ghting
- Exist ing Condi ti ons
- Overal l Conce pt ( l i ghti ng fo r f r a mi n g , fe a t u re s , a n d sa fe t y / a cces s )
- Scale and i nte gr ati on ( si te se c t i o n s )
- Result s of M oc k Up
- Feasibi l i t y of mul ti -gl obe f i x t u re re - u se
- Techni cal I nfor m ati on ( hea t ma p s & co lo r te mp e r a t u re)
- Visuali z ati on ( V I DEO)
• Scul pt ure Fou ntai n
- Octobe r 201 8 C FA
- Det aili ng
- Revised Maq ue tte ( 3 D Pr i n t wi t h Ba se a n d Co n tex t )
- Figure H e i ght
3
WA L KWAY
4
WA L K WAY: P R O P O S E D S T R AT E GY
BRIDGE SHIF TED SOUTH
• The visitor will be directed more
readily to the left of the sculpture;
the beginning of the story
• The shift improves the connection
between the Pershing Statue and Pen
the Memorial Sculpture both nsylv
ania
visually and physically Ave
nue
• The shift improves circulation from NW
the belvedere by providing more
space between the ramp and the
walkway
• Asymmetrical bridge fits within
the asymmetry of the existing park
15th Street NW
14th Street NW
Pennsylvania Avenue NW
Circulation Routes
5

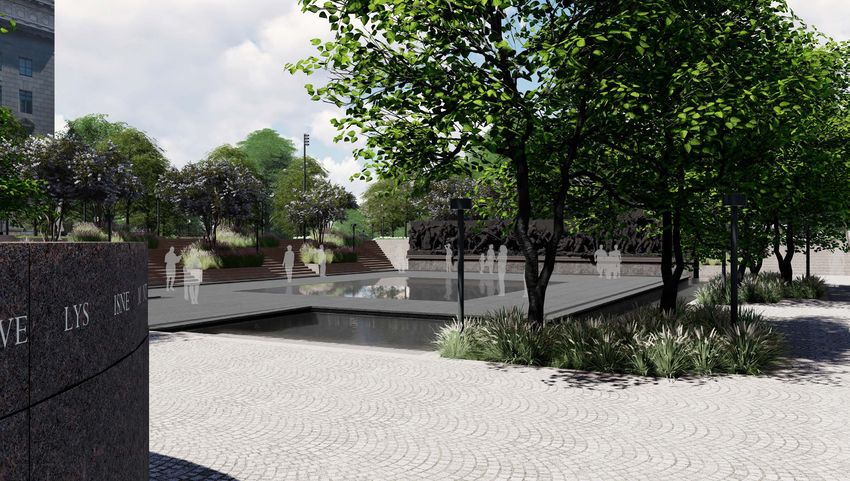

WA L K WAY: C I R C U L AT I O N S E Q U E N C E
BRIDGE SHIF TED SOUTH - PERSHING
6
WA L K WAY: C I R C U L AT I O N S E Q U E N C E
B R I D G E S H I F T E D S O U T H - S O U T H B E LV E D E R E
7
WA L K WAY: C I R C U L AT I O N S E Q U E N C E
B R I D G E S H I F T E D S O U T H - N O R T H B E LV E D E R E
8
LIGHTING
9

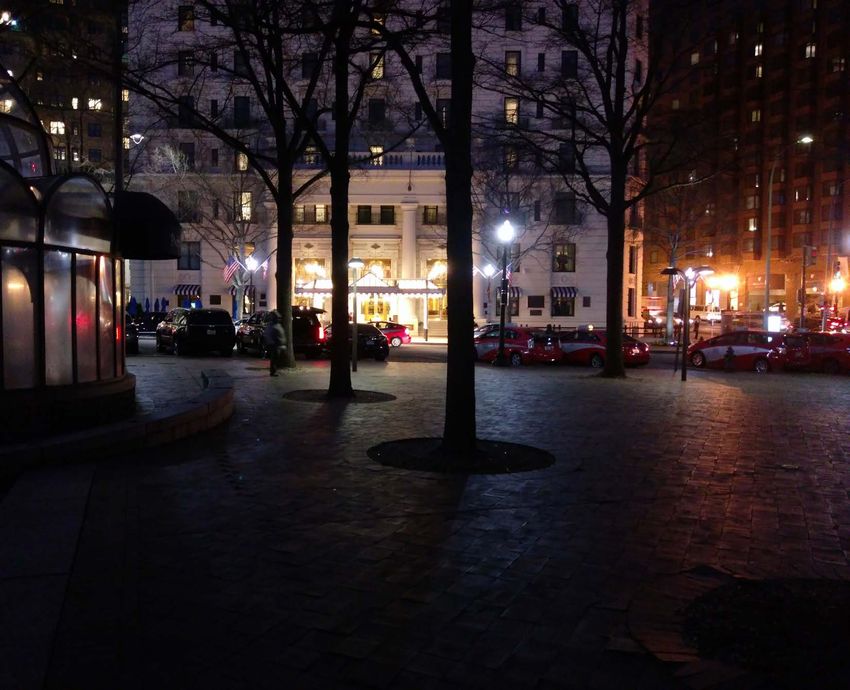

LIGHTING: EXISTING CONDITIONS
PA R K L I G H T I N G F R O M W I L L A R D
T h oug h muc h in disre p air, t he orig inal lig hting
s tr ategy focu se d p e rim e te r light ing o n the no r th
a n d e a st si d ewalks consiste nt w it h the PA Avenue
a n d D.C. sta n dards. Moving into the park, each o f
t h e 4 ma i n en tr yways was acce nted with circu latio n
ligh ti n g to pu ll t he visitor into t he s pace. Once at
t h e i n te r i or, b right and joy ful de corative fix tu res
f r a me d th e sout h and we st te rraces , creating a
v ibr a n t b a c kd rop for t he p ool / ice rink. At the
lowe r l evel s, tall p ole m ounte d flo o d lig ht s provid ed
ligh t on to th e p ool / ice rink for adeq u ate lig ht
leve l s wh en f i l le d w it h act ive skaters du ring the dark
win te r m o n th s . Ge ne r al Pe rshing was hig hlig hted
wit h a p ol e mounte d acce nt light which presu mably
p rov i d e d l i g h t ing for t he adjace nt walls as well when
fu n c ti on i n g . The lack of light ing within the g rove
it se l f m ay b e a re sult of t he ant ici pated g low cas t
by t he ex i sti n g kiosk / conce ssions s tr uctu re. The
lowe r te r r a ce to t he nor t h and e as t o f the po o l are
illum i n a te d v i a t he circulat ion lighting po les u sed at
t h e si te en tr y ways.
10LIGHTING: EXISTING CONDITIONS
C E N T R A L P O O L BA S I N
- I ce r i n k p o l e m ounte d floodlight s illu minate the
ce n tr a l p o ol w it h light to sup p or t the o rig inal park
(w inter ) u se
- Lowe r sou th te rrace lit via ove r flow fro m the ice
r in k p o l es
- West ter r a ce and fount ain re m ai n in darknes s
11LIGHTING: EXISTING CONDITIONS
PERSHING AREA
- Po l e mou n ted sp ot light focuse s o n General
Pe r s h i n g ( n o l onge r funct ioning)
- Pe rsh i n g wa lls are unlit , day t im e viewing o nly
- Are a i s l i t v i a am b ie nt light ing o nly
12LIGHTING: EXISTING CONDITIONS
G R OV E
- PA Ave l i g h ti ng st andards are co ntinued arou nd the
n o r t h a n d ea st p ar k e dge s
- PA Ave nue f i x t ure s illum inate t he peripher y o f the
g rove
- La c k o f cen tral fix t ure s le ave s t he majo rit y o f the
grove i l lu mi n ate d via am b ie nt light o nly

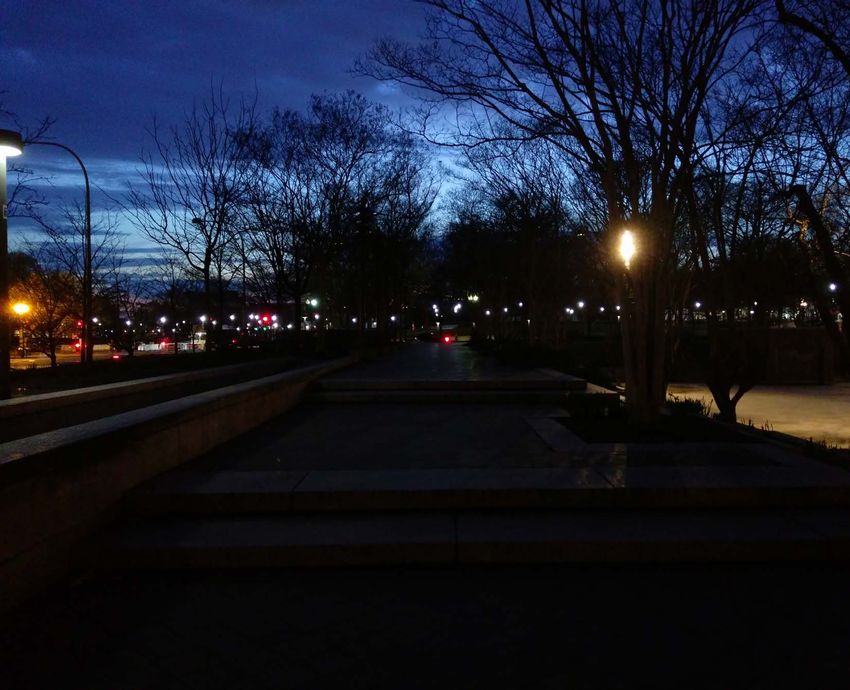

13LIGHTING: EXISTING CONDITIONS
U P P E R S O U T H T E R R AC E
- D e cor a ti ve f i x t ure s fram e t he central po o l and ice
r in k ( mu l ti - g l o b e fix t ure s) but no lo ng er fu nctio n
le a v i n g muc h of t he up p e r te r race and seating areas
in d a r k n e ss
- W h en op e r a tional, t he ex ist ing mu lti-g lo be fix tu res
f lo o d th e u p p e r walkways w it h light. Their lack o f
s h ie l d i n g c re a te s glare along t he walkway
- Ad j a cen t i ce r ink fix t ure s are vis ible throug h the
tre e s, a l a c k o f shie lding cre ate s peripher y g lare
- Ex i sti n g A DA r am p subt ly illum inated via ad jacent
p o les

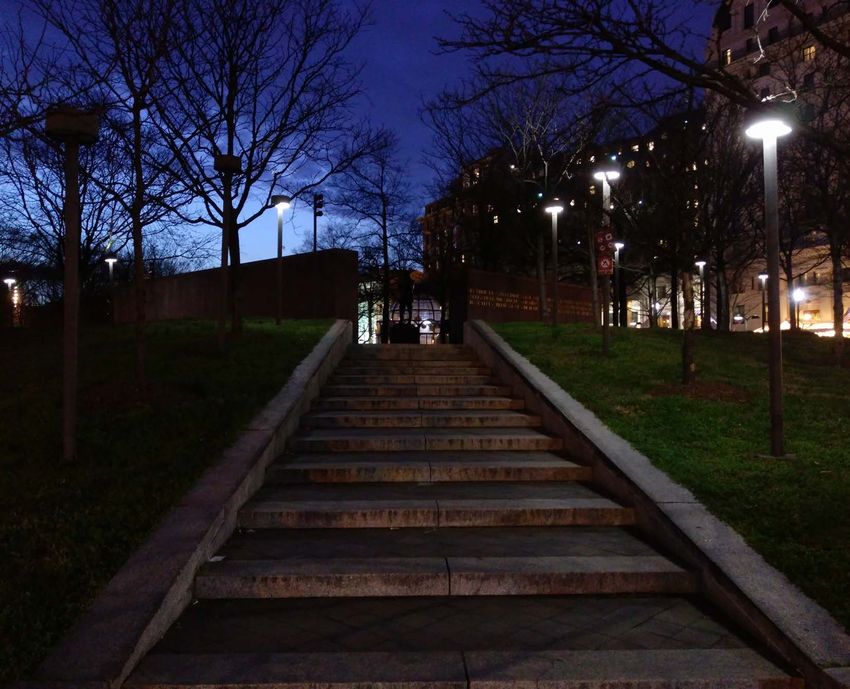

14LIGHTING: EXISTING CONDITIONS
S E E N T RY
- C ircu l a ti on l i ght ing fram e s t he entr y s tairs lead ing
to t he Pe r sh i n g Me m or ial
- N o n o p e r a ti o nal fix t ure s to b e re paired and reu sed
wit hi n th e p rop ose d str ate gy to match the exis ting
d e s ig n
- T h e Pe r sh i n g st at ue at t he top of the s tair,
cu r ren tl y i n d a r kne ss
- Eas t Per sh i n g Wall Q uote illum inated by ad jacent
f ix t u res
15LIGHTING: EXISTING CONDITIONS
SOUTH BERM
- Sou th b e r m i s exclude d from t he park lig hting ,
wit h o n l y co b r a light s for t he roadway lig hting
16LIGHTING: CONCEPT
L AY E R S / ZO N E S
Visitors filter into the park through
layers and zones of light which adapt 1 P E R I M E T E R A DA P TAT I O N
the visitor from the surrounding 2 C O N T E M P L AT I O N T E R R AC E
brightly lit urban context to the 3 I N F O R M AT I V E A R R I VA L
more quietly lit landscape. Within 1 Pen 4 C O M M E M O R AT I V E F O C U S
this soft landscape lighting are the nsylv
ania
commemorative elements (both Ave
nue
existing and proposed) which emerge NW
from the quiet park lighting with
feature illumination, bringing the
focus of the nighttime visitor onto the
commemorative works.
1 PERIMETER ADAPTATION supports
3
sidewalk and street lighting, tying the site
into the urban street grid and allowing for
15th Street NW
a transition from the high brightness light
levels of the city to the softer glow of the
4
memorial park
2 CONTEMPLATION TERRACE is a zone
of lower brightness that carries visitors into
the site while shielding the commemorative
works from the adjacent urban glare
14th Street NW
3 INFORMATIVE ARRIVAL functions
similarly to the contemplation terrace as a
step down in brightness from the perimeter 2
to pull visitors into the Grove, Belvedere, and
Lower Plaza
4 COMMEMORATIVE FOCUS the zone in
which the commemorative works emerge
from the subtle park lighting to pull the focus
of the visitor to the memorial elements while
providing a contemplative atmosphere, fully
sheltered from the surrounding city lights
Pennsylvania Avenue NW
17LIGHTING: CONCEPT
MEMORIAL EXPERIENCE
• Lighting Temperature ~3000K for all
proposed fixtures provides a consistent
white light that complements both the
bronze and green landscape of the site
(see sample fixtures)
Pen
• All park fixtures use the same tone to nsylv
ania
ensure a cohesive effect across the site Ave
nue
NW
15th Street NW
14th Street NW
Pennsylvania Avenue NW
18LIGHTING: CONCEPT
CONTEXT
• Existing street lighting illuminates the
park context
Pen
nsylv
ania
Ave
nue
NW
15th Street NW
14th Street NW
Pennsylvania Avenue NW
19LIGHTING: CONCEPT
P E R I M E T E R A DA P TAT I O N
• Existing roadway cobra lights remain to
illuminate the adjacent driving lanes
• Existing Washington Globe fixtures
remain along the northern stretch of PA
Avenue NW and 14th Street NW Pen
nsylv
ania
• Washington Globe fixtures are added to Ave
nue
the southern stretch of PA Avenue NW NW
and 15th Street NW to illuminate the
sidewalks and put soft lighting in the
trees, continuing the park to the curb
rather than stopping at the top of the
berm
• Circulation lighting remains at each of
the entryways, illuminating the stairs and
walks that lead into the site
15th Street NW
14th Street NW
Pennsylvania Avenue NW
20LIGHTING: CONCEPT
C O N T E M P L AT I O N T E R R AC E
• Subtle circulation lighting replaces the
bright and playful multi-globe fixtures of
the previous ice rink to softly illuminate
the upper terrace and create a gentle
glow within the trees for a contemplative
memorial backdrop Pen
nsylv
ania
• Existing seating alcoves receive soft Ave
nue
ground illumination from under the NW
benches to create a comfortable place to
sit during the evening hours
• Wall mounted step lights illuminate
the accessible ramp to direct visitors
through the site
15th Street NW
14th Street NW
Pennsylvania Avenue NW
21LIGHTING: CONCEPT
I N F O R M AT I V E A R R I VA L
• PADC light fixtures are continued along
the edge of the site consistent with the
existing park character
• PADC fixtures are carried into the grove
as an extension of PA Avenue to draw Pen
visitors into the space nsylv
ania
Ave
nue
• Soft illumination of the belvedere from NW
wall mounted step lights and a handrail
light at the ramp draws visitors into the
interpretive hinge where the memorial
unfolds before them
• Linear lighting recessed into the framing
device of the interpretive panels
provides legibility for the interpretive
content
15th Street NW
14th Street NW
Pennsylvania Avenue NW
22LIGHTING: CONCEPT
C O M M E M O R AT I V E F O C U S
A SOLDIER’S JOURNEY
• 2 accent lighting poles provide focused
lighting at strategic angles to illuminate
the sculpture and provide depth with
highlight and shadow (see lighting mock
up slides) Pen
nsylv
ania
• Northern pole is tucked within the lower Ave
nue
plaza planter to minimize its impact NW
upon the site
• Southern pole is aligned and set just
above the terrace planter to hide the
pole into the tree canopy
PEACE FOUNTAIN
• A linear light is set below the water level
to illuminate the entire cascade
15th Street NW
• 2 accent lights in the adjacent terrace
planters provide focused light upon the
quote for legibility
PERSHING MEMORIAL
• 2 accent light poles provide directional
14th Street NW
lighting to illuminate the statue of
General Pershing from opposite
directions to inform his shape
• Linear uplights illuminate the inscriptions
on the Pershing walls for nighttime
legibility
• Underbench lighting of the Pershing
bench provides a soft comforting glow
within the Pershing plaza
WALKWAY
• Circulation lighting in the surrounding
planters create a shadow which defines
Pennsylvania Avenue NW
the curb and illuminates the walking
surface
FLAGSTAFF
• Uplights gently illuminate the flag
23L I G H T I N G : PA L E T T E
C I R C U L AT I O N L I G H T I N G
PADC PEDESTRIAN LIGHTING EXISTING PARK CIRCULATION LIGHTING
INTEGRAL HANDRAIL LIGHTING UNDERBENCH LIGHTING WALL MOUNTED STEP LIGHTS
24L I G H T I N G : PA L E T T E
R OA DWAY / S I D E WA L K L I G H T I N G
WASHINGTON GLOBE WASHINGTON GLOBE WITH FINIAL EXISTING ROADWAY COBRA POLES
25L I G H T I N G : PA L E T T E
C O M M E M O R AT I V E E L E M E N T L I G H T I N G
POLE ACCENT LIGHTS CASCADE UPLIGHTING
CASCADE QUOTE ACCENT LIGHTS (DOT / SPOT, TBD) PERSHING WALL IN GRADE UPLIGHTS FLAGSTAFF UPLIGHTING
26L I G H T I N G : PA L E T T E
INTERPRETIVE ELEMENT LIGHTING
INTERPRETIVE PANEL LIGHTING
27L I G H T I N G : S CA L E A N D I N T E G R AT I O N
SITE SECTION
28L I G H T I N G : R E S U LT S O F M O C K U P
SOUTHERN POLE
• Softer light from the southern pole provides balance and fill to the
figures from the secondary facing direction of the sculpture (backs of
figures) to inform their shape and provide depth
• Each fixture focuses on a specific portion of the sculpture and can be
dimmed / filtered as needed to compose the complete lighting effect
• All fixtures have snoots / glare control louvers for fully focused lighting A
that does not extend beyond the sculpture or produce glare elsewhere
in the park
A
B
C
D
B
~26 ’-8”
~30’- 0”
C
D
Photos are provided to represent the intended lighting strategy based on equipment available during the lighting mock up at 1:6 scale and are as accurate as possible, but are subject to distortion through camera
exposure / shutter speed.
29L I G H T I N G : R E S U LT S O F M O C K U P
NORTHERN POLE
• Brighter lighting from the northern pole highlights the figures from the primary facing direction of the sculpture (faces of figures) and casts shadows to make
the figures pop against the more subtly illuminated backdrop
• Each fixture focuses on a specific portion of the sculpture and can be dimmed / filtered as needed to compose the complete lighting effect
A
• All fixtures have snoots / glare control louvers for fully focused lighting that does not extend beyond the sculpture or produce glare elsewhere in the park B
C
D
A
B
~42’- 0”
C
D
Photos are provided to represent the intended lighting strategy based on equipment available during the lighting mock up at 1:6 scale and are as accurate as possible, but are subject to distortion through camera
exposure / shutter speed.
30L I G H T I N G : R E S U LT S O F M O C K U P
FULL LIGHTING EFFECT IN CONTEXT
Circulation lighting on the west terrace creates a gentle glow within the trees allowing the sculpture to fade into its context
The sculpture shown in this rendering is a photograph of the maquette taken during the lighting mock up
31L I G H T I N G : F E A S I B I L I T Y O F M U LT I - G LO B E F I X T U R E R E - U S E
P R O P O S E D E F F E C T V S I M PAC T O F M U LT I - G LO B E F I X T U R E ( W E S T T E R R AC E )
Lighting Considerations Lighting Considerations
• Quiet glow of Western terrace softens the edge of the sculpture allowing the sculpture • Bright multi-globe points of light around the sculpture cause distraction and are out of
to fade into its context context
• Viewing experience is comfortable without glare from beyond the sculpture • Multi-globe fixtures have no shielding, causing glare for park users and site
• Proposed pole is more quiet and in keeping with the somber character of a memorial adjacencies
• Proposed pole directs light into the site as opposed to the sky and site adjacencies • Playful character is more fitting to the ice rink than the memorial
• Existing fixtures are in disrepair and would require significant upgrades to repair - This
includes the necessity of altering the historic look and feel of the fixture by replacing
the original visible incandescent light with a dedicated LED alternate to comply with
contemporary energy standards.
Locations of existing multi-globe fixtures
32L I G H T I N G : T E C H N I CA L I N F O R M AT I O N
E X I S T I N G F I X T U R E S TO R E M A I N W I T H I N T H E P R O P O S E D L I G H T I N G S T R AT E GY
1
Pen
nsylv
ania
Ave
nue
NW
2
15th Street NW
2A
14th Street NW
3
13
Pennsylvania Avenue NW
33L I G H T I N G : T E C H N I CA L I N F O R M AT I O N
I L LU M I N A N C E P S E U D O C O LO R D I AG R A M S - C I R C U L AT I O N L I G H T I N G O N LY
Technical footcandle mapping of only
the lighting required for circulation
Pen
nsylv
ania
Ave
nue
NW
15th Street NW
14th Street NW
Pennsylvania Avenue NW
34L I G H T I N G : T E C H N I CA L I N F O R M AT I O N
C I R C U L AT I O N L I G H T I N G O N LY ( F I X T U R E S)
1 4
Pen
nsylv
ania
Ave
nue
NW
2 5
15th Street NW
2A 6
14th Street NW
3
13
Pennsylvania Avenue NW
35L I G H T I N G : T E C H N I CA L I N F O R M AT I O N
I L LU M I N A N C E P S E U D O C O LO R D I AG R A M S - M E M O R I A L L I G H T I N G O N LY
Technical footcandle mapping of
only the lighting associated with
the commemorative works and
interpretive elements
Pen
nsylv
ania
Ave
nue
NW
15th Street NW
14th Street NW
Pennsylvania Avenue NW
36L I G H T I N G : T E C H N I CA L I N F O R M AT I O N
M E M O R I A L L I G H T I N G O N LY ( F I X T U R E S)
7 12
Pen
nsylv
ania
Ave
nue
NW
8
15th Street NW
9
14th Street NW
10
11
Pennsylvania Avenue NW
37L I G H T I N G : T E C H N I CA L I N F O R M AT I O N
I L LU M I N A N C E P S E U D O C O LO R D I AG R A M S - C O M B I N E D L I G H T I N G
Technical footcandle mapping of the
full combined lighting effect on the
site
Pen
nsylv
ania
Ave
nue
NW
15th Street NW
14th Street NW
Pennsylvania Avenue NW
38S CU L P T U R E F O U N TA I N
39S C U L P T U R E F O U N TA I N : O CTO B E R 2 01 8
STUDIES / PROCESS
BASE / PLINTH BOOKENDS - FULL BOOKENDS - PARTIAL WRAPPED OVER TOP
SEAM SEAM - TAPERED WEST FRAMED NESTED
EAST FRAMED 1 EAST FRAMED 2 WRAPPED AROUND SIDES CANTILEVERED
40S C U L P T U R E F O U N TA I N : O CTO B E R 2 01 8
CA N T I L E V E R E D C O N C E P T W I T H M O N O L I T H I C F O U N TA I N ( P R E F E R R E D D I R E CT I O N A S A DV I S E D BY C FA )
E A S T E L E VAT I O N
N
W E S T E L E VAT I O N
41S C U L P T U R E F O U N TA I N : D E TA I L I N G
R E F I N E D CA N T I L E V E R E D C O N C E P T W I T H M O N O L I T H I C F O U N TA I N
Directives + Responses October 2018 CFA
• Strong preference for the option in which
the bronze sculpture rests on a stone
shelf projecting above a recessed linear
waterfall paired with the monolithic stone
wall on the west side
• Further developed the preferred option
• Recommended developing the light
quality and ethereal character by making
the stone shelf as thin as possible and
further recessing the waterfall
• Coordinated with structural and fountain
team to develop the narrowest internal
profile possible to support the bronze
sculpture and desired cascade effects
• Preference for the darker granite to
match the Pershing Walls
• Pursued the use of the Carnelian granite
to match the existing Pershing Walls
42S C U L P T U R E F O U N TA I N : D E TA I L I N G
R E F I N E D CA N T I L E V E R E D C O N C E P T W I T H M O N O L I T H I C F O U N TA I N
Bookend 1 1/2" higher for
containment
Granite capstone / weir
West cascade source trough
Granite capstone
2'-2"
Edge of granite bookend
beyond
Back of bronze sculpture
6"
4" Source pipe cast into
4" min. concrete with 8" dia.
flange
3" Granite veneer with
rough corduroy finish
1'-115 8"
12'-0"
1'-10"
CIP Concrete, slope to drain
Slope to drain Granite veneer plinth with
dowels
8" min.
9"
1'-2"
25 8"
East cascade source trough
2" Granite veneer with
integral weir, joints sealed
4" min. Water level
6" Source pipe cast into
concrete with 10"dia.
flange
43
WWI Memorial 1717 - Sculpture Fountain SectionS C U L P T U R E F O U N TA I N : R E V I S E D M AQ U E T T E S T E P 1
D I G I T I Z I N G T H E M AQ U E T T E TO M A I N TA I N T H E S PAC I N G A N D P O S I N G O F F I G U R E S B E T W E E N V E R S I O N S
44S C U L P T U R E F O U N TA I N : R E V I S E D M AQ U E T T E S T E P 2
P H OTO G R A M M E T R Y O F N E W & R E WO R K E D E L E M E N T S ( P R E S E N T E D O CTO B E R 201 8)
45S C U L P T U R E F O U N TA I N : R E V I S E D M AQ U E T T E S T E P 3
C O M P I L I N G T H E P H OTO G R A M M E T R Y A N D P R E V I O U S M AQ U E T T E I N TO A S I N G L E D I G I TA L S C U L P T U R E
46S C U L P T U R E F O U N TA I N : R E V I S E D M AQ U E T T E S T E P 4
T E S T P R I N T I N G S E L E C T I O N S O F T H E D I G I TA L M AQ U E T T E AT VA R I O U S S CA L E S TO B E T T E R U N D E R S TA N D P R O P O R T I O N S
4A - Small Scale 4B - Full Size
Test prints shown on this page were generated by the Pangolin foundry to test the process and do not represent an actual figure from the maquette.
47S C U L P T U R E F O U N TA I N : R E V I S E D M AQ U E T T E S T E P 5
P OW D E R P R I N T I N G T H E E N T I R E C O M P O S I T I O N F I G U R E BY F I G U R E TO C H E C K T H E AC C U R ACY O F T H E L I N E S A N D A R C S A S D E S I G N E D BY
SA B I N
48S C U L P T U R E F O U N TA I N : R E V I S E D M AQ U E T T E S T E P 6
P H YS I CA L H A N D S C U L P T I N G O F T H E BA S E TO C O O R D I N AT E W I T H T H E S U R R O U N D I N G A R C H I T E CT U R E
49S C U L P T U R E F O U N TA I N : R E V I S E D M AQ U E T T E S T E P 7
R E - D I G I T I Z I N G T H E F I N A L M AQ U E T T E W I T H T H E A D D E D H A N D S C U L P T I N G I N O R D E R TO P R O D U C E A F I L E R E A DY F O R A F U L L S CA L E M I L L I N G
O R R E P R I N T I N G AT E N L A R G E D S CA L E S
3D Print with added hand sculpting
50S C U L P T U R E F O U N TA I N : F I G U R E H E I G H T
C O M PA R I S O N
The proposed compression of the sculpture
to achieve the reduced length as presented
May 2018 May 2018
in May 2018 (based upon studies of the scale Approved Height Approved Length
maquette) was determined to cause visual
distortions when enlarged to full scale for
testing at the foundry.
As such, two options have emerged for the
sculpture fountain:
A: Continue with the desired 6’-6” FIGURE
HEIGHT (as determined by May 2018 CFA)
which results in a longer sculpture fountain
totaling 59’-4” when including the stone
bookends (58’-4” of just bronze)
B: Continue with the previously approved
sculpture fountain LENGTH of 57’-6” (56’-6”
just bronze) and scale the figure height down
to a 6’-2” figure height to fit the approved
length
Please Note:
The scale figures (shown at 5’-6 1/2”)
represent the median height of the average Granite Plinth Granite Plinth
U.S. male (5’-9”) and female (5’-4”)
Cascade Cascade
The sculpture and scale figures are shown on
this page in true elevation. The perception
of the height differences is increased when
viewed in perspective, see full scale prints
available during CFA presentation on Viewing surface
04/18/2018 Existing Pershing Statue for Comparison
Pool Pool
51S C U L P T U R E F O U N TA I N : F I G U R E H E I G H T
I M PACT I N E L E VAT I O N
East Elevation
West Elevation
Orange outline represents extents of sculpture fountain at previously approved LENGTH
52S C U L P T U R E F O U N TA I N : F I G U R E H E I G H T
I M PACT O N S I T E L AYO U T
Orange outline represents extents of sculpture fountain and associated walkway relationships at previously approved LENGTH (bridge shifts slightly between options based on paving patterning associated
with each length)
53S C U L P T U R E F O U N TA I N : F I G U R E H E I G H T
I N C O N T E X T C O M PA R I S O N
54S C U L P T U R E F O U N TA I N : F I G U R E H E I G H T
I N C O N T E X T C O M PA R I S O N
55S C U L P T U R E F O U N TA I N : F I G U R E H E I G H T
I N C O N T E X T C O M PA R I S O N
56S C U L P T U R E F O U N TA I N
R E F I N E D CA N T I L E V E R E D C O N C E P T W I T H M O N O L I T H I C F O U N TA I N
Directives + Responses October 2018 CFA
• Strong preference for the option in which
the bronze sculpture rests on a stone
shelf projecting above a recessed linear
waterfall paired with the monolithic stone
wall on the west side
• Further developed the preferred option
• Recommended developing the light
quality and ethereal character by making
the stone shelf as thin as possible and
further recessing the waterfall
• Coordinated with structural and fountain
team to develop the narrowest internal
profile possible to support the bronze
sculpture and desired cascade effects
• Preference for the darker granite to
match the Pershing Walls
• Pursued the use of the Carnelian granite
to match the existing Pershing Walls
57APPENDIX
E X I ST I N G L I G H T I N G AS S E S S M E N T
S CU L P T U R E D E TA I L I N G + D I M E N S I O N S
FIGURE HEIGHT PRECEDENTS
58A P P E N D I X: E X I S T I N G L I G H T I N G A S S E S S M E N T
E X I S T I N G M U LT I - G LO B E F I X T U R E S
A B C D
A
B
C
MISSING
D FIXTURE
E
F
G H I J K L
E F G H
I J K L
Note: None of the existing multi-globe fixtures are currently operational 59A P P E N D I X: S C U L P T U R E D E TA I L I N G
FIGURE HEIGHT 6’-6”
60A P P E N D I X: S C U L P T U R E D E TA I L I N G
FIGURE HEIGHT 6’-6”
61A P P E N D I X: S C U L P T U R E D E TA I L I N G
F I G U R E H E I G H T 6 ’ -2 ”
East Elevation
West Elevation
62A P P E N D I X: S C U L P T U R E D E TA I L I N G
F I G U R E H E I G H T 6 ’ -2 ”
63A P P E N D I X: F I G U R E H E I G H T P R E C E D E N T S
OT H E R D.C. M E M O R I A L S
UNITED STATES NAVY MEMORIAL GENERAL PERSHING MEMORIAL D.C. COURTS - LINCOLN STATUE JOHN MARSHALL PARK
BASE HEIGHT: 0’-4” BASE HEIGHT: 4’-0” BASE HEIGHT: 9’-4” BASE HEIGHT: 3’-2”
FIGURE HEIGHT: 7’-0” FIGURE HEIGHT: 8’-0” FIGURE HEIGHT: 9’-0” FIGURE HEIGHT: 8’-0”
KOREAN WAR VETERANS MEMORIAL VIETNAM VETERANS MEMORIAL GRAND ARMY OF THE REPUBLIC FRANKLIN DELANO ROOSEVELT MEMORIAL
BASE HEIGHT: 0’-0” BASE HEIGHT: 1’-0” BASE HEIGHT: 11’-0” BASE HEIGHT: 0’-0”
FIGURE HEIGHT: 7’-4” FIGURE HEIGHT: 8’-0” FIGURE HEIGHT: 6’-6” FIGURE HEIGHT: 5’-10”
64You can also read
