SPECIALISTS IN IDENTIFICATION SOLUTIONS
2020 PRODUCT CATALOG
Photo Credit: Armando Piccinini, Biomark Europe Sales & Project Manager
TISSUE CUSTOM
PIT TAGS READERS IMPLANTERS SOFTWARE SAMPLING SYSTEMS
FISH & WILDLIFE | INNOVATION & DEVELOPMENT | RESEARCH & TECHNOLOGY
V.01.2020 +1 208-275-0011 | W W W.BIOMARK.COM
Biomark was founded in 1990 with the intent to develop a premiere fish tagging organization using RFID tag technology. It quickly adapted into a company that not only tagged fish, but also sold RFID tag products, and developed and built RFID tag data recovery systems based on customer research needs. The founding employees chose Boise for its accessibility to the Rocky Mountains and its great quality of life and because of Boise’s strong technology businesses and research community Biomark quickly adopted it as its permanent home. As a result of the company growth Biomark has occupied several locations in and around the Boise area and prides itself in being a valuable member of Idaho’s Treasure Valley community. Product innovation has always had a strong foundation at Biomark. In the 1990s Biomark pioneered the first commercially available custom PIT tag detection systems as well as tagging and data collection tables. During the next decade Biomark played a major role in designing and developing fabrication techniques to reliably operate PIT tag antennas underwater (a major breakthrough in evaluation and monitoring technique). Biomark has emerged as a worldwide leader in RFID products for fish and wildlife research. From innovative, first of their kind, stream, river, and hydro facility RFID tag detection systems, to tag injection systems and production tagging services, Biomark delivers the best in products and services to its customers.
SPECIALISTS IN IDENTIFICATION SOLUTIONS
BIOMARK, INC.
705 S. 8th St.
Boise, Idaho 83702
Phone 208-275-0011
Fax 208-275-0031
www.biomark.com
biomarkservice@merck.com
Celebrating our 30 year anniversary working in fisheries biology and electronic identi-
fication, Biomark, Inc. is a worldwide leader in unique animal identification through radio fre-
quency identification (RFID). We specialize in PIT (Passive Integrated Transponder) technology
providing a broad variety of identification and monitoring solutions for fish and wildlife research.
Our extensive product line, as presented in this catalog, provides options for the most simple
small scale mark-recapture projects to large, long-term monitoring solutions.
Biomark provides specialized design, construction and installation of custom PIT-tag monitor-
ing systems. We work directly with the researchers and end users to tailor systems for spe-
cific, and often unique applications. PIT-tag technology is a powerful tool for fish and wildlife
monitoring and research. We see every project as an opportunity to expand our knowledge and
develop and improve our product offering. Our goal is to supply tags, readers, systems and reli-
able components that result in
quality data. Our Applied Bio-
logical Services Department
offers an extensive array of
field services including statis-
tical analysis, computational
modeling, specialized software
and population and ecosystem
monitoring.
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
3
SPECIALISTS IN IDENTIFICATION SOLUTIONS
TABLE OF CONTENTS
Services. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Tags. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Implanters. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Tissue Sampling Unit . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Readers. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Antennas. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Reader and Tag Specifications. . . . . . . . . . . . . . . . . . . 37
Terms and Conditions, Warranty. . . . . . . . . . . . . . . . . . 39
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
4
SPECIALISTS IN IDENTIFICATION SOLUTIONS
Services
Our Applied Biological Services Department Areas of expertise and examples of their application include:
was founded to apply quantitatively rigorous analyses to • Habitat carrying capacity
fisheries, wildlife, and aquatic ecosystem management.
• Remote sensing
We provide statistically robust solutions that foster the
ecosystem restoration and conservation. • Applied genetics
We recognize that data is expensive, rarely perfect, and • State-space modeling
often unavailable for locations and populations of interest. • Integrated population models
Nonetheless, decisions must be made. We excel in:
• Tagging services and fisheries surveys
• Combining imperfect data sources and estimators to
reduce bias and uncertainty. • Data processing and automation
• Implementing modeling approaches to support finer Our team is committed to serving our clients with the
spatial/temporal estimators from coarse data. highest quality science possible. We do this by employing
some of the most well respected, hardworking biologists
• Capitalizing on sampling opportunities to extend and biometricians in our profession.
inference.
• Applying modeling approaches that extend inference
with quantitative measures of uncertainty/confidence.
• Developing static and interactive data services
that deliver answers to management questions in a
coherent and unambiguous manner.
• Employing cost-effective, multidisciplinary data
collection.
Please contact us for further information.
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
5
SPECIALISTS IN IDENTIFICATION SOLUTIONS
Services
TAGGING SERVICES & TRAINING
Biomark provides tagging services to the fisheries community. Trained biologists can visit your site to
provide custom training for fish tagging, conduct small-scale tagging projects using our portable tagging
equipment, or conduct large-scale tagging projects using our custom built tagging trailer.
We also provide detailed tagging workshops. These workshops can be done onsite with facility personal
and cover tagging methods, hands-on tagging training and basic software use. These workshops can be
customized to meet your organization’s specific needs and protocols and help ensure compliance.
The Biomark Biological Services group has tagged over 10 million fish at locations throughout the world.
Tagging training in Newport, Ireland. The Biomark crew using the pre-loaded tagging
system in our custom, on-site tagging trailer.
TECHNICAL WORKSHOPS
We offer technical workshops covering the function-
ality of our IS1001 MTS reader platform, RFID history,
RFID theory, site components, reader configuration,
antenna design and data collection and management.
These workshops are designed to be interactive
and provide customized information most relative
to the group we are presenting to regardless of their
experience with RFID technology and PIT systems.
If your organization or collaborative group might benefit
Biomark staff instruct a group in Italy at one of our technical
from a workshop in your region please contact us. workshops that includes hands-on demonstrations and equipment
testing.
ELECTRONIC TECHNICIAN & SENIOR ENGINEER SERVICES
Our Electronics Technicians have over 100 yrs Transceiver in addition the suite of IS1001 daughter
combined of experience in the field of RFID. They boards and other reader and system devices.
can provide guidance on system design and Please contact us for further information on
troubleshooting for existing systems. customized support or specialized development of
Biomark’s Electronic Engineers developed the custom products.
IS1001-Multiplexing Transceiver System and FS3001
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
6
SPECIALISTS IN IDENTIFICATION SOLUTIONS
PIT Tags
HIGH PERFORMANCE PIT TAGS
Biomark FDX-B PIT tags are the highest performing RFID tags on the MiniHPT8
market today for fish and wildlife research. These tags are encapsulated MiniHPT10
HPT9
in biocompatible glass and provide 100% unique identification. The
APT12
tags are available in different sizes, performance levels and packaging
options to meet your specific application needs and budget. All Biomark HPT23
PIT tags are ISO 11784/11785 compliant and ICAR approved.
12 mm 125 kHz FDX-A tags are available upon request.
Biomark Biomark Biomark Biomark Biomark
MiniHPT8™ MiniHPT10™ HPT9™ APT12™ HPT23™
8.4 mm x 1.4 mm 10 mm x 1.4 mm 9 mm x 2.1 mm 12.5 mm x 2.1 mm 23 mm x 3.85 mm
134.2 kHz 134.2 kHz 134.2 kHz 134.2 kHz 134.2 kHz
Price dependent on quantity and product combinations. Biomark strives to provide the most competitive pricing and product
combination packages to meet your individual needs and budget. Please call or email for details and price quotes.
BIOTHERM13™ PIT TAGS
The BioTherm13 tag is a temperature sensing transponder in conjunction with a standard 13 mm x 2.12 mm
FDX‐B 134.2 kHz tag. The temperature monitoring range is 33°C to 43°C. When read using the Biomark HPR
Plus™ or HPR Lite readers, the tag code and tag temperature are displayed and stored in the memory.
Please call for pricing and availability.
HDX BULK PIT TAGS
High performance HDX tags
Biomark HDX12™ Biomark HDX23™ Biomark HDX32™ (Special Order Only) Please call for
12 mm x 2.12 mm 23.1 mm x 3.85 mm 32 mm x 3.85 mm pricing and
134.2 kHz 134.2 kHz 134.2 kHz availability.
PRE-LOADED STERILE TAGS
GPT12™ Pre-load MiniHPT8 Pre-load MiniHPT10 Pre-load
Sterile LL Sterile Syringe Sterile Syringe
(12.5 mm 134.2 kHz) (8.4 mm x 1.4 mm (10.3 mm x 1.4 mm
134.2 kHz) 134.2 kHz)
Qty: 1 – 499 $
7.65 $
7.65 $
7.65
Qty: 500 – 1,000 $
7.15 $
7.15 $
7.15
GPT12 PLS Includes 1 MK15™ Each tag comes Each tag comes
luer-lock fit pre-loaded in 16 pre-loaded in 16
implanter in each gauge needle gauge needle syringe
box of 25. syringe sealed in sealed in a gas
a gas sterilized sterilized pouch that
MK15 pouch that includes includes 6 peel off
6 peel off tag tag code stickers
For quantities over 1,000, code stickers for for attaching to data
attaching to data sheets. Packaged in
call for special pricing. sheets. Packaged boxes of 10.
MiniHPT 8/10 PLS
in boxes of 10.
All prices in US Dollars All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
7
SPECIALISTS IN IDENTIFICATION SOLUTIONS
PIT Tags
PRE-LOADED NEEDLES & TRAYS
Pre-loaded tags are available
individually or in trays of 100. Pre-loaded Trays
The trays or individual needles, Biomark APT12 Pre-load Tray 12.5 mm, 134.2 kHz FDX-B
coupled with an implant gun, Biomark HPT8 Pre-load Tray 8 mm, 134.2 kHz FDX-B
make tagging fast and efficient. Biomark HPT9 Pre-load Tray 9 mm, 134.2 kHz FDX-B
Each needle comes pre‐loaded
Biomark HPT10 Pre-load Tray 10 mm, 134.2 kHz FDX-B
with the tag secured inside the
Biomark HDX12 Pre-load Tray 12 mm, 134.2 kHz HDX
needle, preventing the tags from
(100 pre-loaded needles per tray) Tray
falling out before being implanted.
The system eliminates the need to
Pre-loaded Individual
disinfect between implants, making
Biomark APT12 Pre-load 12.5 mm, 134.2 kHz FDX-B
it a very efficient and safe tagging
process. All Biomark PIT tags are Biomark HPT8 Pre-load 8 mm, 134.2 kHz FDX-B
ISO 11784/11785 compliant and Biomark HPT9 Pre-load 9 mm, 134.2 kHz FDX-B
ICAR approved. Requires the Biomark HPT10 Pre-load 10 mm, 134.2 kHz FDX-B
MK25 implant gun. Used trays, Biomark HDX12 Pre-load 12 mm, 134.2 kHz HDX Individual (includes safety cap)
lids and needles can be recycled
depending on your local recycling
Pre-loaded PIT Tag Pricing
services. All tags are ISO Compliant 134.2 kHz
Please visit our website or YouTube Price dependent on quantity and product combinations. Biomark strives to provide the most competive pricing
and product combination packages to meet your individual needs and budget. Please call or email for details.
channel to view our tagging tutorials.
CLIENT TAGS PRE-LOADED
Send in your tags to be loaded in trays or
Qty. 1–19,999 tags 0.65 per tag
$
individually. Please call for quantities over 10,000. OR $65 per tray
Disinfection and tag code files are an additional charge.
PRE-LOAD TRAY CLAMP
The tray clamp holds each pre‐loaded
tray firmly in place, ideal for a tag station
and mass marking. $125
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
8
SPECIALISTS IN IDENTIFICATION SOLUTIONS
Implanters
MK25™/MK65™ IMPLANT GUN MK15™ IMPLANT GUN
For use with the pre‐loaded trays For use with the GPT12™ Pre‐
and pre‐loaded individual tags. Load Sterile LL. MK15 $5.10
MK25 $
43
(See page 8)
MK65 $
43
MK25: for use with APT12, HPT9 and HDX12 trays
MK65: for use with MiniHPT8 and MiniHPT10 trays (See page 7)
MK10™/MK165™ IMPLANTER
Syringe style implanter with corrosion resistant stainless steel spring and
hardware.
MK10: Requires N125™ needle for the Biomark APT12, HPT9, HDX12 or the
N206 needle for Biomark HPT23, HDX23 and HDX32. 5.10 ea
$
MK165: Requires the N165 needle for the Mini HPT8 and MiniHPT10. MK10
MK165
MK7™ IMPLANTER
Plastic syringe‐style implanter with 1.25 inch 12 gauge non‐replaceable
needle. For the Biomark APT12, HPT9 and HDX12.
2.55 ea
$
N125™/N165™ & N206™ NEEDLES
These stainless steel replacement needles are designed to be used with
Qty: Qty: Qty:
the MK10 and MK165 implanter. 1-49 50-499 >499
N125: 2 inches long, 12 gauge needle N206: 2 inches long, 6 gauge N125 $
2.35 | $
2.10 | $
1.85
for the Biomark APT12, HPT9 and needle for use with the Biomark N165 2.35
$
| $
2.10 | $
1.85
HDX12. HPT23, HDX23 and HDX32. N206 $
8.40
N165: 2 inches long, 16 gauge
needle for the Biomark MiniHPT8
and MiniHPT10.
N165 N125 N206
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
9
SPECIALISTS IN IDENTIFICATION SOLUTIONS
TISSUE SAMPLING UNIT
Scientific advancements in genomics along with continued development of affordable analytics has changed
the sampling industry and collecting genetic samples has never been more efficient and cost effective as it is
with the Biomark Tissue Sampling Unit (TSU).
Each TSU includes a collection tube (vial), stainless steel blade punch, red plastic blade punch safety clip
and is designed for a single, one-time use. The blade punch cuts and pushes the sample directly into the vial
automatically sealing upon release.
The proprietary liquid buffer is usable in DNA laboratory settings without restraints on existing DNA extraction
protocols and provides a stable medium for multiple extractions.
Features:
• Ability to confirm the presence of a tissue sample via the clear collection vial
• Samples can be taken in almost any environment without the risk of cross contamination
• High quality sample method
• Vials fit in a standard laboratory plate (96 vials)
• Efficient lab processing using the original sampling vials
• 2D barcode and alpha numeric label can be paired with PIT tag numbers
• Minimum of (12) month life when stored at room temperature. Longer when refrigerated or frozen
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
10SPECIALISTS IN IDENTIFICATION SOLUTIONS
TISSUE SAMPLING UNIT
TSU vial packaging options:
• Stackable Trays of (96) vials with lids
• Boxes of (10) TSUs marked with (10) consecutive ID numbers (customized numbering available with special
order)
• Individual zip lock bags with TSU vial number on a peel away label with notation space for comments
• Individual zip lock bags with a paired TSU and PIT tag, peel away label with notation space for comments.
• Bulk option—box of (100) units in cardboard trays of 20 vials per tray. Optimal for large quantities where the
well plates are not needed
The TSU is designed for a single one-time use. The re-use of any portion of the TSU could potentially
contaminate the DNA sample.
TSU Applicators & Vial Openers
TSU Prices
(Required, sold separately)
Trays of 96 $
190.00
The TSU applicator is used in conjunction with the TSU to collect the sample Individual paired with $
4.10
by cutting the tissue and sealing it into the TSU vial. Allows clean, easy, and pre-loaded pit tag
efficient collection of tissue samples for DNA analysis without the need for Box of 100 $
199.00
any hand cutting with scissors or use of tweezers.
Call for pricing on quantities over 1000.
Applicators & Vial Openers
Biomark fish friendly applicator 255.00
$
AF Large applicator 76.50
$
Aluminum Vial Opener 25.50
$
Vial opener pliers 205.00
$
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
11NEW
SPECIALISTS IN IDENTIFICATION SOLUTIONS
ITEM
BIOLOGIC DATA COLLECTION
MODULE
Description Price
The BioLogic Data Collection Module (DCM) is an Android
Application & Tablet Package
software application designed for streamlining data collection Includes:
and data management. The software is easily customized for First year DCM software
subscription ($495) $
975
collecting many types of data points including RFID codes (PIT tags) Samsung Active Tablet ($480)
and lengths using our Electronic Measuring Board (see following page). Includes tablet setup
The DCM custom data fields and templates can be pre-populated DCM Annual Subscription Renewal
from a user defined list or default value and assigned constraints and 12 months $
375
validations, minimizing errors when collecting data. The application
increases efficiency, improves accuracy and provides the integration of
peripheral hardware via Bluetooth connections.
Features:
• Customizable data fields with validity checks and alerts
• Integration with Bluetooth devices
• Support for built-in GPS
• Support for built-in camera
• Exportable data files to external files
Supported Bluetooth Devices:
• HPR Plus Reader
• HPR lite Reader
• GPR Plus Reader
Requirements:
• Electronic Measuring Board (see following page) • Minimum Android version: Android 5.0 (API level
21 - Lollipop)
• Socket D740 Bar Code Scanner • Minimum screen size is 7” with resolution of 1024
x 600 pixels.
• DataLogic QuickScan Bar Code Scanner (with Blueport XP adapter) • Bluetooth 4.0
• Ohaus Navigator Scale (with Blueport XP adapter) • Access to Internet
• SATO MB200i printer
• QSTAR BT-A818ZXT Bluetooth GPS
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
12SPECIALISTS IN IDENTIFICATION SOLUTIONS
ELECTRONIC MEASURING BOARD
Description Price
The all new Biomark Electronic Measuring Board is fully
100cm Measuring Board $
2,850
designed and constructed in our Boise, Idaho facility from
50cm Measuring Board 2,425
machined high-density polyethylene and welded together for
$
Boards include:
absolute ingress protection and ruggedness. The measurement Padded Soft Case with large
sensor is a high grade magnetostrictive rod that measures length using pockets for storage of all
accessories, AC charger, and (2)
a cordless magnetic pen-like stylus. The board has been designed to magnetic stylus pens.
provide seamless Bluetooth™ communication with Biomark’s Data ACCESSORIES
Collection Module application.
Magnetic stylus $
90
Features: 12V Battery charger $
60
• 50 cm measurement window (100 cm coming soon)
• Sealed Status LEDs (Green power, Blue Bluetooth)
• 30+ hours of battery life
• +/- 0.5 mm accuracy
• Easy calibration
• Anti-slip rubber feet
• All Stainless-steel fittings
• Stable Bluetooth connectivity
• Additional compatable devices available such
as PIT Tag Readers, Scale, 2D Barcode Scanner, Label Printer, etc.
The Ohaus Scout comes in a slim design with large back-lit LCD. Features include
superior overload protection, multiple weighing units and application modes. Geared
for high performance in your facility with fast stabilization time and high resolution
weighing. Maximum capacity 6,200 gm. 80 hour battery life with AA batteries.
The Socket Mobile DuraScan D740 is a universal qr code
Description Price reader with Bluetooth® wireless technology and a highly
Ohanus Scout Includes: durable exterior. Ideal for outdoor damp conditions,
RS232 Interface kit and Bluetooth 825
$
Dongle for Scale (BluePort XP).
scanning both 2D and 1D barcodes. The scanner’s IP54-
rated outer casing withstands dust and water splashes
RS232 Interface Kit 140
$
to keep up with the demands of an industrial work
Bluetooth dongle for scale 325
$ environment. Its antimicrobial material is easy to clean,
(BluePort XP) helping protect from germs picked up with dirt in fisheries
Socket Mobile DuraScan D740 451
$
and wildlife settings.
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
13SPECIALISTS IN IDENTIFICATION SOLUTIONS
Software
BIOMARK TAG MANAGER™

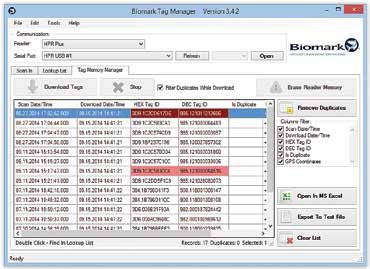

With Biomark’s Tag Manager Software, you can easily connect to any Biomark reader and download tag
codes from the software to either Excel, Notepad, or an internal table. You can scan tags in “real time” into the
software’s table as well as input specific data for each tag pertinent to your project. The software includes a
tag code look up function that can alert the user when a desired tag code from a user defined list is found. Tag
Manager is compatible with the HPR Plus™ HPR Lite Reader, Pocket Reader, Pocket Reader EX and FS2001
in conjunction with ISO11784/11785 compliant tags [FDX-B, FDX-A & HDX tags]. The software is compatible
with Windows XP, Windows 7 and Windows 8. Free with all reader purchases.
Memory Download
Download tag codes with one button
for easy export to Excel, including Date/
Time Stamp, GPS coordinate, and other
user defined data.
Real Time Scan
Scan tag codes directly into a table with
date/time stamp (see below), with the
option of additional data entry such as
site, species and special notes. Real
Time Scan has the ability to look up
specific tag codes, allowing particular
individuals to be found during a tag
reading session.
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
14SPECIALISTS IN IDENTIFICATION SOLUTIONS
Software
BIOTERM™
BioTerm is a simple Biomark reader
communication program that allows users to
download files, delete files, adjust settings, view
current status, and perform firmware updates. It
has a convenient feature for logging data from
a reader directly to a computer by enabling the
“Capture” function. When connected to a reader
with diagnostic reporting capability, BioTerm can
be an effective data logging solution. This feature
is useful for evaluating system and tag detection
performance while running a system in the field.
Use BioTerm to set up a connection via serial or
IP address.
Download BioTerm for FREE from our website.
BIOSTAT™
BioStat is a charting and communication software designed to display and retrieve real-time data
from Biomark readers. This data includes parameters such as antenna current, noise level, tuning status, and
other key values of high-performance
systems. Monitoring these values
during system installation and
operation will ensure reliability and
confidence in system performance.
Reader parameters, displayed in line
charts, give users a simple and visual
way of understanding those values
over time. BioStat allows users to
adjust the data gathering speed and
configure automatic chart saving to a
PC. The charting process may be set
up to collect data in real-time for hours
or days when necessary. Like BioTerm,
BioStat supports all connection types
of Biomark readers and command
communication.
Download BioStat for FREE from our
website.
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
15SPECIALISTS IN IDENTIFICATION SOLUTIONS
Biomark’s Web portal provides near real-time access to view status of remote PIT-tag detection sites. Data
is retrieved every 4-hrs and displayed in the web portal. Key metrics displayed include: last tag detected, last
connection, input voltage, antenna noise, current and capacitance along with other metrics such as water flow
levels and air and water temperatures. Users are notified automatically, via email, if a site variable deviates from a
specified range. Diagnostic and tag detection data can be viewed and exported directly to CSV files. Site Module
is an effective tool for managing O&M labor and minimizing downtime; resulting in a robust dataset. Detection sites
can be grouped to allow related users the ability to see where their tags are detected across a geographic region.
Biomark’s BioLogic login page provides
secure access to a user’s site or
collection of sites.
Easily view site stats on the site dashboard
SUBSCRIPTION OPTIONS
Standard subscription plan......................$120/month
Subscription with cell plan*......................$126/month
Subscription with satellite plan*...............$245/month
*USA plans. International plans available.
Contact us for more information.
Please visit our website for additional information.
All prices in US Dollars Convenient view of tag detections with download capability
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
16SPECIALISTS IN IDENTIFICATION SOLUTIONS
HPR LITE READER
Introducing the all new HPR Lite handheld reader. This is the only
reader available on the market today that has been fully designed
and engineered for aquaculture and fisheries use and the unique
environments and needs of these applications.
The Biomark HPR Lite is a hand-held rechargeable battery powered
PIT tag reading device that is compatible with the technical
specifications of ISO Standards 11784 and 11785, including FDX-B,
HDX, FDX-B BioTherm tags, FDX-B Fastags, FDX-A (FECAVA),
Trovan tags, Avid encrypted tags, and UNIQUE (Manchester)
microchips.
The Reader is waterproof (IP67: 1 meter for 30 minutes), shock
resistant, designed to be easily held and operated. The user
interface is similar to the HPR Plus reader (see page 15) and includes
large backlit screen and audible beeper, light and vibration when
a tag is read. Tag code format can be set by the user (decimal or
hexadecimal). The internal memory is up to 50,000 tag codes with
time/date and temperature (if enabled) and can communicate via
Bluetooth or mini USB for tag code download and real-time scanning
using the included Biomark Tag Manager Software.
Reader includes: Hard protective carrying case, international power
supply/battery charger (100-240V; 50-60Hz; 2.0 Amp), micro USB-
PC communication cable, test tag, user manual and hand strap.
The HPR Lite reader is not designed or intended to be operated
underwater or otherwise intentionally submerged.
Includes free downloads of Tag Software Manager.
See pg. 14 for software details.
Qty: Qty: Qty:
1-4 5-9 >10
$
815 ea. | 765 ea. |
$
715 ea.
$
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
17SPECIALISTS IN IDENTIFICATION SOLUTIONS
™
BIOMARK HPR PLUS™ READER
Biomark developed the HPR Plus reader from the ground up to
incorporate features gleaned from feedback from the fish and wildlife
community and our own Biological Services Department. The reader
provides detection of ISO 11784/11785 FDX‐B and HDX PIT tags, expanded
tag storage (~1.6M), simple data retrieval via USB port or Bluetooth and
large display. It is waterproof (IP67: 1 meter for 30 minutes), and it floats.
With the HPR Plus, location information (GPS) can be appended to tag
codes in real time to provide reach level accuracy. The reader features
auto‐tuning capability, eliminating the need for a tuning box and
making it ideal for small scale monitoring applications
using any off-the-shelf antennas or a custom antenna
built specifically for your requirements.
Includes free downloads of Biomark Tag Manager.
See pg. 14 for software details.
See additional antenna options on page 29.
SPECIFICATIONS
Tags read 134.2 FDX-B,
HDX
Tag memory storage 1.6 million
Bluetooth Yes
GPS Yes
Comm. port USB
Auto tuning Yes
Status report Yes
Noise report Yes
Water proof Yes
Display 24 bit color
5.5 cm x 9.5 cm Optional custom hard protective case.
INCLUDED ACCESSORIES
WITH THE HPR PLUS Qty: Qty: Qty:
Desk Stand 1-4 5-9 >10
Battery charger/power kit HPR Plus $
3,055 | 2,940 |
$ $
2,805
Loop antenna
2 meter antenna cable
Accessories Price
HPR DC Power Cable $
87.00
USB PC communication cable
20’ Antenna Cable $
255.00
USB to flash drive communication cable
(for custom antennas)
Test tag
50’ Antenna Cable $
382.50
Hand strap (for custom antennas)
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
18SPECIALISTS IN IDENTIFICATION SOLUTIONS
GPR Plus
GPR PLUS
The Global Pocket Reader Plus (GPR Plus) is a portable hand-held
PIT tag reader that provides wireless communication via its integrated
Bluetooth® module. The GPR Plus is ideal for wildlife applications in
dry environments. The reader conforms to the technical specifications of
ISO Standards 11784 and 11785 and reads all Biomark tags, FDX-B ISO,
BioTherm13, HDX ISO, and FDX-A PIT tags.
The GPR Plus provides the basic PIT tag reader function of reading and
transmitting the identification code contained within a PIT tag.
When a tag is detected, an audible beeper along with the ID number in
decimal format is displayed on the screen that alerts the user that the tag
was successfully scanned.
GPR Plus
Power is provided to the GPR Plus through 7.2VDC NiMH rechargeable
batteries or AAA alkaline batteries.
The NiMH rechargeable batteries can be recharged using the detachable Description Price
GPR Plus $
556
USB cable with an external wall adapter.
The GPR Plus has a 3000 tag code memory capacity and includes a time/
date stamp with each tag read. The memory is easily downloaded using
Biomark Tag Manager™ (see page 14) or BioTerm (see page 15).
Wireless communication capability is provided to the GPR Plus through
its Bluetooth® module. A Bluetooth visual indicator provides information
about the wireless communication status.
The GPR Plus comes with a Windows® based PC utility program which
can be used to configure the reader and is available to download on our
website.
The reader comes with a combined USB battery charger/communication
cable, rechargeable NiMH batteries, test tag, waterproof AquaPac and
Quick Start Guide. Full user manual is available for download on our
website.
NOTE: The GPR Plus is NOT
WATERPROOF. Please use the Aquapac
provided when in use. Store the reader out
of the Aquapac in a dry environment when
not in use. Condensation
will cause permanent non-warranty
covered damage.
Includes free downloads of Biomark Tag Manager and Aquapac.
See pg. 14 for software details.
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
19SPECIALISTS IN IDENTIFICATION SOLUTIONS
IS1001
MTS™
IS1001 MTS™
S P E C I F I C AT I O N S ›› Master Controller Specifications
Input Voltage 18–30 V DC (standard) or 10-15 V DC (optional), jumper-selectable
Input Fuse 4A, resettable
Reverse Polarity Protection Yes
Under Voltage Protection Yes
Over Voltage Protection Yes
In-rush Current Limiting Yes
Synchronization Capability IS1001 activation synchronization, chain configuration,
hardwired twisted-pair interface
Tag Technologies Supported ISO FDX-B, ISO HDX
Virtual Tag Test Detection self-diagnostic, electronically adjustable level
Internal Data Storage 16MB of real-time information
External Data Storage Up to 32Gb of real-time information on USB flash drive
The Multiplexing Transceiver
IS1001 Ports Two, supporting up to 12 nodes
System (MTS) is Biomark’s Communication Ports USB (Mini-B) ASCII protocol; Ethernet (RJ45) ASCII protocol;
newest stationary reader fiber optics (ST), ASCII protocol
platform. The MTS consists of External Status LEDs Power on (Green), system ready (Yellow), tag detected (Red)
a Master Controller (MC) and Buzzer Piezo indicator, 4 kHz, 70 dB **
up to 12 IS1001™ readers. Display Graphical LCD, backlit
The MC acts as the command, Keypad 9 Keys, content-sensitive
control, and data collection Operating Temp. Range -4°F – 158°F (-20°C – 70°C)
center for the PIT-tag Operating Humidity Range 10% – 90%, non-condensing
monitoring system. It directs Enclosure NEMA 4x, IP66 rated steel box
Weight 16.6 lbs. (7.5 kg)
each IS1001 to activate its
Dimensions 21.0” L x 8.0” W x 6.0” H (53.5 cm x 20.5 cm x 15.5 cm)
antenna and send stored tag
Agency Approvals No
IDs and diagnostic information.
Power and communication
transfers between IS1001 and MC via CAN (Controller Area Network)
Features:
Bus cable. • CAN Bus ports for single or dual IS1001
reader branches
The Master Controller polls IS1001s in a user-selectable sequence and
• USB storage and communication ports
is able to activate one or two IS1001s at a time. Tag data and system
• Fiber optic ports
information is stored in the MC internal memory, sent to a removable
• Ethernet port
memory device, or communicated in real time. The system allows
• Auxiliary port for site-specific actions (e.g.
for the synchronization of multiple Master Controllers for large-scale gate operation or visual indicator when
systems requiring more than 12 antennas. The MTS is highly adaptive specific tags are detected)
and effective for many applications. • Easily manage and control multiple IS1001
readers
See the following page for IS1001 details. • Integrated self-tests and diagnostics
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
20SPECIALISTS IN IDENTIFICATION SOLUTIONS
IS1001™
IS1001™
The IS1001 is a high performance
auto-tuning reader designed
S P E C I F I C AT I O N S ›› Biomark IS1001
for applications requiring low Input Voltage Model IS1001: 18–28 V DC. Model IS1001-12V: 10-15 V DC
power consumption and high Input Fuse 3A, resettable
adaptability to environmental Reverse Polarity Protection Yes
changes. Its powerful antenna Under Voltage Protection Yes
circuitry is capable of operating Over Voltage Protection Yes
a large, low inductance In-rush Current Limiting Yes
antenna. The IS1001 operates Antenna Exciter Voltage Model IS1001: 12-20 V DC, electronically adjustable, 5
in standalone or synchronized steps. Model IS1001-12V: Fixed to 10 V DC
system configurations without Antenna Exciter Configuration Full bridge
the need for a Master Controller Antenna Current Limit 11.0 Ap-p, firmware enforced
(MC). This adaptable functionality Antenna Tuning 10 capacitors, electronically switched
makes the IS1001 ideal for Operating Frequency 134.2 kHz
small-scale monitoring systems Synchronization Capability Antenna exciter clock synchronization, network
requiring one or two antennas. configuration, hardwired twisted-pair interface *
For applications requiring multiple Tag Technologies Decoding ISO FDX-B, ISO HDX, Half-telegram™ FDX-B (non-ISO)
antennas use the IS1001 with an Self Diagnostics Virtual-test tag, electronically adjustable level
MC in an MTS™ configuration. Internal Data Storage 100,000 tag IDs, 1,000 status reports *
External Data Storage Up to 64Gb of real-time information on USB flash drive * **
IS1001-24v $
1,485 (with optional accessory board)
IS1001-12v $
1,485 Communication Ports USB (Mini-B). Ethernet (RJ45), BIOTERM protocol. Fiber optics
IS1001 MC $
3,647 (ST), BIOTERM protocol * **
External Status LEDs Power (green). Tuned (red). Scan (yellow). Tag (white) **
(with optional accessory board)
Buzzer Piezo indicator, 4 kHz, 70 dB **
Features: (with optional accessory board)
• Scalable and expandable
Operating Temp. Range -4°F – 158°F (-20°C – 70°C)
• Dynamic antenna auto-tuning
Operating Humidity Range 10% – 90%, non-condensing
• 12V and 24V DC models available
Weight & Dimensions 1.0 lbs. (0.45 kg) (w/o enclosure). 12.25”L x 3.75”W x 2.00”H
• Adjustable antenna output power (24V (31 cm x 9.5 cm x 5 cm) (w/o enclosure)
model) *supported in standalone operation mode **with optional Accessory Board
• Detection of ISO-compliant FDX-B and
HDX PIT tags
• Automatic system performance
diagnostics
• Internal memory for up to 100,000 tags
and 1,000 reports
• USB port for local operation
• Field upgradeable firmware
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
21SPECIALISTS IN IDENTIFICATION SOLUTIONS
IS1001™
IS1001™ INTERFACE BOARDS
The following accessory boards add functionality to the IS1001 reader. Typically used in standalone or synchronized
system configurations, accessory boards expand the communication capability of individual IS1001 readers.
LED User Interface Board
The LED User Interface Board incorporates IS1001 status LED lights, a buzzer with adjustable volume, and a reader
reset button. $82
Remote Communication Board
The Remote Communications Board incorporates
Ethernet and fiber optic communication interface.
This board also contains IS1001 status LED lights
and a buzzer. $402
Data Logger Board
The Data Logger Board stores all real-time received data on an external USB flash drive. It provides the ability
to synchronize time on and to collect data into a single file from pairs of IS1001s. This board also contains
IS1001 status LED lights, a buzzer, and a reader reset button. $242
BLE Data Logger Board
The BLE (Bluetooth Low Energy) Data Logger Board stores tag IDs and diagnostics data (status reports)
received in real-time to its internal flash memory with date and time stamp. It provides an access to the data
and to the reader via Bluetooth wireless connection. $242
Data-Over-Power (DOP)
The Biomark Data-Over-Power (DOP) board allows for IS1001 readers to be configured in a “star” configuration
as opposed to a “network” configuration used with CAN Bus cable. The star configuration is convenient if more
than two locations need to be monitored. $295
Environmental Probe
The Biomark Environmental Probe interface board provides connectivity and data logging capabilities for the
Campbell Scientific 109 Temperature Probe, CS450 and CS451 pressure temperature probe. (Can be used
with any Biomark monitoring system). $364
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
22SPECIALISTS IN IDENTIFICATION SOLUTIONS
IS1001™
IS1001™ SUBMERSIBLE ENCLOSURE
For optimal performance, the IS1001 should be placed as close to its respective antenna as possible. Biomark
designed the IS1001 submersible enclosure for in-river systems operating with the IS1001-Master Controller
(IS1001-MC). Each IS1001 is accessed via the IS1001-MC by way of either a CAN Bus cable or Data-Over-
Power (DOP) cable. Submersible enclosures interconnect with each other and the MC to create the IS1001-
MTS™ network. The last IS1001 can be located as much as 1,000’ from the MC. The IS1001 submersible
enclosures include cables with underwater connectors. One cable plugs into the antenna while the others plug
into neighboring submersible enclosures or the MC, depending on system configuration. Contact us for more
information regarding system configuration and pricing.
Note: The IS1001 is not included in the price of the submersible enclosure.
IS1001 Submersible Enclosure
IS1001SUB™
The submersible enclosure includes a 2.5 foot antenna cable and either
a CAN Bus cable or DOP cable, depending on system configuration. $975
IS1001™ POWER DISTRIBUTION
PLC Battery Switcher: The Biomark PLC consisting of an IS1001-Master Controller and up to
battery switcher provides isolation from conduced 6-IS1001 transceivers. The PCB battery switcher is
electromagnetic interference. The PLC battery for 24 VDC systems. The PCB battery switcher will
switcher is used with PIT tag detection arrays provide approximately 1-d of autonomy if grid power
consisting of 1 or more IS1001-Master Controllers is interrupted.
and 6 or more IS1001 transceivers. The PLC battery
Solar: Biomark provides turn-key solar power
switcher can be used with 12 or 24 VDC systems. The
solutions for a variety of system sizes, ranging from
PLC battery switcher will provide approximately 1-d
standalone IS1001 to systems with an IS1001-MC
of autonomy if grid power is interrupted.
and multiple IS1001 transceivers.
PCB Battery Switcher: The Biomark PCB Thermoelectric Generator: Biomark can provide
battery switcher provides isolation from conduced
thermoelectric generators from Gentherm in standard
electromagnetic interference. The PCB battery
and Hybrid (propane and solar) configurations.
switcher is used with PIT tag detection arrays
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
23SPECIALISTS IN IDENTIFICATION SOLUTIONS
Remote
Monitoring
REMOTE MONITORING
Biomark developed a suite of software and hardware tools to facilitate remote monitoring of PIT tag detection
systems. Remote monitoring results in more effective use of labor; use it when you really have to, and reduces
data gaps. PIT tag and environmental data can both be retrieved remotely.
Biomark BioLogic™
Biomark’s BioLogic Web portal
provides access to tag and
diagnostic data for remote sites.
The sites includes an “alert”
function that will automatically
notify users if system parameters
(input voltage, antenna noise,
Lochsa River, Idaho (Satellite communication site) antenna current) deviate from user
specified values. See page 11 for
more info.
Cloudgate 4G WW modem
Biomark utilizes 4G capable
modems from Cloudgate to
provide remote connectivity
where wireless coverage is
available.
Lochsa River, Idaho (Satellite communication site)
Hughs Satellite
Biomark utilizes satellite modems
from Hughs satellites for systems
that are inaccessible by a direct
connection of wireless modem.
Sylte River, Norway (Cellular communication site)
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
24SPECIALISTS IN IDENTIFICATION SOLUTIONS
FS3001
FS3001 TRANSCEIVER
Biomark, in partnership with the National Oceanic and Atmosphere Administration and Bonneville Power
Administration, completed a long-term project to develop a system for detecting PIT tags passing through
spillways at hydroelectric facilities. Biomark developed the FS3001 transceiver, power supply and flat-plate
ogee antenna as part of this effort.
FS3001: The FS3001 transceiver is for
use with the ogee flat plate antenna and
exciter cable. The modular design of the
FS3001 allows driving antennas with up to
30A of current.
Ogee flat plate: The Ogee flat-plate
antennas was designed to detect PIT-
tagged juvenile salmonids passing through
spill. The antennas will be embedded in the
spillway ogee and detect fish implanted
FS3001 Transceiver with 12-mm FDX-B tags and traveling at
speeds up to 70 fps (21 mps).
Split Ogee flate plate: The split ogee
flat-plate antenna was designed to span
the expansion joint in the spillway ogee.
The split-antenna has a slightly reduced
detection range when compared to the
standard ogee antenna.
3” construction external shield:
The 3” layered antenna with external
shield can be configured to a variety of
large clear openings. Use of the 3” layered
FS3001 open
construction eliminates the need for ferrite
tiles and produces a larger field, when
compared to a ferrite tile antenna.
Low-pro ferrite tile/external shield:
The low-profile ferrite tile antenna with
external shield provides minimal flow
constriction and can be placed directly on
ferrous metal. The largest antenna we have
constructed to date has a clear opening of
approximately 42” x 42”.
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
25SPECIALISTS IN IDENTIFICATION SOLUTIONS
FS3001
CABLE
Ogee flat plate exciter cable: The AIR802 500Flex MTS DOP protocol. The DOP cable allows an IS1001
cable as the preferred off-the-shelf option for the ogee to be placed as far as 1,000’ from the IS1001-MC.
detection system.
Multi conductor Litz cable: The multi conductor
CAN Bus cable: Biomark designed a 4-conductor Litz cable for use as a simple PIT-tag antenna. The
cable to be used with the IS1001-MTS CAN bus cable has a durable external jacket allowing it to be
protocol. The cable has two conductors for power placed directly in soil or water.
and two conductors for communication. The CAN bus
Single conductor direct burial Litz cable: Biomark
cable allows an IS1001 to be placed as far as 1,000’
designed a single conductor Litz cable for our “high
from the IS1001-MC.
power” cord system. The cable allows construction
DOP cable: Biomark designed a 2-conductor Data-
Over-Power (DOP) cable to be used with the IS1001-
POWER SUPPLY
FS3001 Dual Output: The FS3001 Dual Output power supply was designed to provide power separately
to the FS3001 CPU and exciter circuitry. The CPU is powered by 12 VDC and the exciter circuitry has a 0-50
VDC range.
FS3001 power supply
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
26SPECIALISTS IN IDENTIFICATION SOLUTIONS
Small Scale
Monitoring
SMALL SCALE MONITORING SYSTEMS
Biomark developed a small-scale PIT-tag detection system to cost-effectively monitor multiple antennas. The
system uses a single reader to multiplex among up to 8 or 16 antennas. The electronic components are housed
in a weather proof enclosure suitable for wind and rain, but not submersion. The system operates on grid or
battery power and includes a Bluetooth data logger for data storage and interfacing with the reader via Biomark’s
Tag Manager application.
Three different diameters of low-profile circular antennas are available with the system: 3” (7.6 cm), 6” (15 cm) or
10” (25 cm). Standard cable length is 50’ (15 m). The standard antennas are suitable for terrestrial applications,
but submersible antennas are available at an additional cost.
Fully custom antenna sizes are also available.
Terrestrial/Indoor Applications:
-Aviaries (nests/feeding stations)
-Flight chambers
-Small mammals (mice, rats, squirrels, etc.)
-Small mammal burrows/colonies/nests
Aquatic/Submersible Applications:
-Fish Tanks
-Aquaculture
-Small lakes/ponds
-Saltwater applications
Call for more information and pricing details. All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
27SPECIALISTS IN IDENTIFICATION SOLUTIONS
Antennas
Biomark fabricates a variety of antenna designs at our Boise, Idaho location. Every antenna is welded,
pressure tested, and function tested in our radio frequency screened room as part of our QA/QC process to
ensure optimal performance. There are essentially two categories: pass through and pass by. Pass-through
antennas detect PIT tags that move through the antenna opening. Pass-by antennas detect tags within a
certain distance above or below the antenna surface. Depending on the location, surrounding environment,
and antenna design, the antenna may be constructed with or without a shield. The shield mitigates for emitted
electromagnetic interference which can degrade antenna performance.
We offer variety of antenna designs and dimensions to meet the needs of multiple PIT-tag monitoring
applications. If you need a custom antenna for your project, let us know. We specialize in the design and
fabrication of unique antenna systems and look forward to these custom projects.

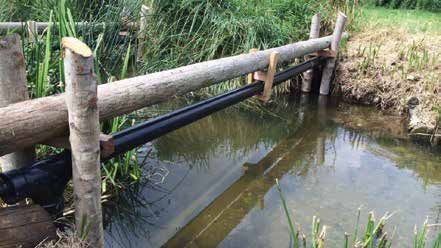

BP Plus™ in use on the Boise River, Idaho. Biomark HDPE antenna installation. Illabot Creek,
Washington.

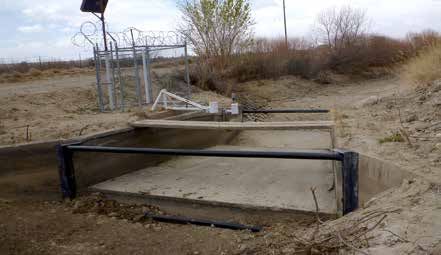

Biomark release pipe monitoring system. Sacramento Biomark fish way monitoring system. Skaha Dam, British
Delta, California. Columbia, Canada.
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
28SPECIALISTS IN IDENTIFICATION SOLUTIONS
™
Antennas
ANTENNAS FOR THE HPR PLUS™
The newly designed Biomark small scale antennas are milled from a special
Antenna Type Price
thermo-plastic material. The two part construction results in a solid antenna
Square Antennas
that is impact resistant and provides a high level of performance and reliability. 18” (45.7 cm)
$
885
$
1,025
These readers are designed for use with both the HPR Plus reader (see page 24” (60.9 cm)
18) and the IS1001 (see page 21) and provide some simple solutions for smaller Rectangular
12” x 24” (30.4 cm x 60.9 cm)
$
952
scale monitoring in pass through or pass-by orientation. These antennas are all 12” x 32” (30.4 cm x 81.2 cm)
$
1,025
manufactured in-house to ensure quality, performance and durability. Circular
10” (25.4 cm)
$
963
Don’t see what you need? Custom sizes are available on special order. Call us 12” (30.4 cm)
$
1025
to discuss your project needs and we can help you formulate a plan and system 18” (45.7 cm)
$
1,138
design. BP PLUS LITE Portable
Antenna (Includes cable)
$
1,025
Readers and cables sold separately.
BP PLUS Portable
Antenna (Includes cable)
$
2,075
20’ Antenna Cable $
268
50’ Antenna Cable $
402
BP PLUS LITE PORTABLE
Square Antenna The BP PLUS Portable
Antenna is a rugged portable
antenna designed for higher
velocity flows and rough terrain. It
features a customized heavy duty
antenna, durable fiberglass extra-
long antenna handle and includes
a padded shoulder and chest
harness for use with the HPR Plus
reader. Reader sold separately.
Rectangular Antenna
See page 18.
The BP Plus LITE Portable
antenna provides a great
solution for walking surveys in
shallow, low- flow water or for
light terrestrial detection. The
unit features collapsible, light-
weight, ergo-dynamic handle with
adjustable length, light-weight
Circular Antenna
antenna, 8 ft. antenna cable and
a padded shoulder and chest
harness. For use with the HPR
Plus reader. Reader sold separately.
BP Plus BP Plus LITE See page 18.
Portable Portable
All prices in US Dollars All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
29IS1001
SPECIALISTS IN IDENTIFICATION SOLUTIONS
Pass-By
Antennas
PASS-BY ANTENNAS
Biomark manufactures pass-by antenna from durable HDPE Description Price
material. They are available in standard 10 and 20-foot lengths. We can
20’ Antenna $
2,412
provide custom dimensions upon request. The antennas can be deployed as Outside dimensions: 243’ L x 43”
W x 5” H, Weight: 173 lbs
single antennas, spanning a small stream, or combined with other IS1001s (excluding connector)
and antennas to establish stream width arrays. Each antenna includes a fixed
15’ Antenna $
2,168
2.5 foot cable with underwater connector where the antenna cable connects. Outside dimensions: 184’ L x 43”
W x 5” H, Weight: approx 131 lbs
Biomark offers a variety of anchor assemblies for antenna installation.
10’ Antenna $
2,090
Installation support is provided or Biomark can deliver a complete turn-key Outside dimensions: 124’ L x 43”
W x 5” H, Weight: 90 lbs
system including delivery, installation and full system onsite configuration
and staff training. 20’ Antenna Kit $
937
Includes: 15-anchor assemblies, ratchet
straps (3), 6’ straps (10), cable ties (10)
10’ Antenna Kit $
561
Includes: 9-anchor assemblies,
ratchet straps (3), 6’ straps (6),
cable ties (5)
IS1001 reader, submersible enclosure
and cabling all sold separately.
Please contact us for a custom antennas, installation and system support options.
ANTENNA CABLES
Biomark offers Description Price
antenna cables with 100’ Antenna Cable $
722
underwater connectors $
1,082 w/conduit
in various lengths. Bare 50’ Antenna Cable $
561
$
741 w/conduit
antenna and CAN Bus
20’ Antenna Cable $
455
cable are available for $
527 w/conduit
purchase by the foot. Antenna Exciter Cable $
5.90 per foot
CAN Bus Cable $
3.90 per foot
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
30IS1001™
SPECIALISTS IN IDENTIFICATION SOLUTIONS
Pass-Through
Antennas
PASS-THROUGH ANTENNAS
Biomark offers pass-through antennas constructed of the same
durable HDPE material as our pass-by antennas. Pass-through antennas
are typically deployed to monitor PIT-tags passing through bypass channels,
release pipes, and adult fish ways. The antennas can be secured within
existing gate slots or Biomark can fabricate guides for the specific location.
Biomark manufacturers a “Thin wall” version of a pass-through antenna
for locations where either shielding is required or where the amount the
antenna protrudes into the passageway needs to be minimized.
Call for pricing. IS1001 reader, submersible enclosure and cabling all sold
separately.
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
31Submersible
SPECIALISTS IN IDENTIFICATION SOLUTIONS
Antennas
SUBMERSIBLE ANTENNAS
We have updated and upgraded the very successful 3′ Description Price
Submersible PIT-Tag Detection Antenna System. The new 3 ft. Antenna $
4,557
Biomark Submersible Antenna system incorporates a 3′, 5′, or 6’ diameter
5 ft. Antenna $
4,827
circular antenna, IS1001 reader with Bluetooth enabled data logger, and
either a 70 Ah or 180 Ah LIFePO4 battery pack into one fully submersible 6 ft. Antenna $
5,477
PIT-Tag detection system that decodes ISO11784/11785 FDX-B and HDX 70 Ah Battery $
1,882
PIT tags. The all-inclusive antenna does not rely on a bank-based power
180 Ah Battery $
2,510
source and is designed to sink in lakes and rivers where it will be anchored
to the substrate. This approach allows the researcher to deploy a small- Battery Charger $
345
scale PIT-tag detection system from the bank or by raft/ boat in previously
hard to sample areas or areas where bank-based systems are subject to
Components
theft and vandalism. The antenna is designed to provide up to 15 (70Ah) • 3’ (0.92m), 5’ (1.53 m), or 6’ (1.83 m) Circular
or 35 (180 Ah) days of continuous operation on a single battery pack and antenna
• IS1001 reader with Bluetooth enabled data logger
has a data storage capacity of 1 million records. Data is downloaded via incorporated
Bluetooth using Biomark BioTerm or Biomark Tag Manager software. The • 70 AH or 180 Ah 12 V LIFePO4 battery pack
Submersible Antenna has been successfully used as an all-in-one PIT-tag • 12 V LIFePO4 Smart battery charger (required for
detection system by researchers to collect PIT tag data in both lakes and Biomark battery packs)
• Components can be purchased separately. (1)
rivers, in habitats previously inaccessible to PIT tag detection equipment and antenna, (1) battery pack, and (1) battery charger
conventional sampling techniques (electro-fishing, hoop or trammel netting). are needed for an initial setup
Although the Submersible Antenna was designed specifically for aquatic • We recommend (2) batteries per antenna to
minimize monitoring down time
systems it can be successfully used for terrestrial applications as a small
scale all-in-one temporary monitoring station.
Includes free downloads of Biomark Tag Manager. Required devices not included:
• Lap Top or field PC with Bluetooth capabilities
See page 9 for software details.
• Terminal emulator program (BioTerm is available as
a free download on the Biomark website)
3 foot (0.92 m)
5 foot (1.53 m)
6 foot (1.83 m)
All prices in US Dollars *Read range is dependant of tag type, orientation and antenna location.
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
32SPECIALISTS IN IDENTIFICATION SOLUTIONS
IS1001
Floating™
Antennas
FLOATING ANTENNAS
Biomark Rigid and Inflatable Floating antennas, are an innovative approach to both stationary and mobile
PIT-tag monitoring. Biomark offers two models, rigid and inflatable, both available in 10-foot lengths. The rigid
design is made up of a 10’ HDPE antenna affixed to an FRP framework and is ideal for semi-permanent,
multi-antenna arrays and larger river/higher flow applications. Rigging kits are available for the rigid antennas
for affixing to overhead cable systems. The inflatable antennas are ideal for mobile detection applications
and small scale, short term monitoring projects. The unit easily deflates and rolls up into a custom duffle bag
for mobility. In response to challenging research needs, Biomark incorporated UV resistant whitewater raft
material in our inflatable antenna design. The result is a durable, multipurpose antenna. Specifically designed
for the IS1001 24V readers.
Description Price
Rigid Floating Antenna
Dimensions – 10’ L x 4” W $
3,806
Weight – 75 lbs
Inflatable Floating Antenna
Dimensions – 10’ L x 3” W $
3,912
Weight – 30 lbs
Rigid Rigging Kit
Includes: 9’ loop straps (3), 6’ straps (3), $
425
locking carabiners (5), pulleys (3), 2’ straps (2), and zip ties
IS1001 reader, submersible enclosure and cabling all sold separately.
All prices in US Dollars
PH +1 208-275-0011 | biomarkservice@merck.com | www.biomark.com
33You can also read
