GeoMedia SQL Server Spatial - User Guide


GeoMedia SQL Server Spatial - User Guide
GeoMedia SQL Server Spatial
User Guide

6.1.0

May 2012
GeoMedia SQL Server Spatial - User Guide
Copyright
Copyright © 2012 Intergraph Corporation. All Rights Reserved.
Including software, file formats, and audiovisual displays; may be used pursuant to applicable software license agreement; contains
confidential and proprietary information of Intergraph and/or third parties which is protected by copyright law, trade secret law, and
international treaty, and may not be provided or otherwise made available without proper authorization from Intergraph Corporation.

U.S. Government Restricted Rights Legend
Use, duplication, or disclosure by the government is subject to restrictions as set forth below. For civilian agencies: This was developed at
private expense and is "restricted computer software" submitted with restricted rights in accordance with subparagraphs (a) through (d) of
the Commercial Computer Software - Restricted Rights clause at 52.227-19 of the Federal Acquisition Regulations ("FAR") and its successors,
and is unpublished and all rights are reserved under the copyright laws of the United States. For units of the Department of Defense
("DoD"): This is "commercial computer software" as defined at DFARS 252.227-7014 and the rights of the Government are as specified at
DFARS 227.7202-3.
Unpublished - rights reserved under the copyright laws of the United States.
Intergraph Corporation
P.O. Box 240000
Huntsville, AL 35813

Terms of Use
Use of this software product is subject to the End User License Agreement ("EULA") delivered with this software product unless the licensee
has a valid signed license for this software product with Intergraph Corporation. If the licensee has a valid signed license for this software
product with Intergraph Corporation, the valid signed license shall take precedence and govern the use of this software product. Subject to
the terms contained within the applicable license agreement, Intergraph Corporation gives licensee permission to print a reasonable
number of copies of the documentation as defined in the applicable license agreement and delivered with the software product for
licensee's internal, non-commercial use. The documentation may not be printed for resale or redistribution.

Warranties and Liabilities
All warranties given by Intergraph Corporation about equipment or software are set forth in the EULA provided with the software or
applicable license for the software product signed by Intergraph Corporation, and nothing stated in, or implied by, this document or its
contents shall be considered or deemed a modification or amendment of such warranties. Intergraph believes the information in this
publication is accurate as of its publication date.
The information and the software discussed in this document are subject to change without notice and are subject to applicable technical
product descriptions. Intergraph Corporation is not responsible for any error that may appear in this document.
The software discussed in this document is furnished under a license and may be used or copied only in accordance with the terms of this
license. No responsibility is assumed by Intergraph for the use or reliability of software on equipment that is not supplied by Intergraph or
its affiliated companies. THE USER OF THE SOFTWARE IS EXPECTED TO MAKE THE FINAL EVALUATION AS TO THE USEFULNESS OF THE
SOFTWARE IN HIS OWN ENVIRONMENT.
Intergraph is not responsible for the accuracy of delivered data including, but not limited to, catalog, reference and symbol data. Users
should verify for themselves that the data is accurate and suitable for their project work.

Trademarks
Intergraph, the Intergraph logo, and GeoMedia are registered trademarks of Intergraph Corporation. Microsoft and Windows are registered
trademarks of Microsoft Corporation. Bing is a trademark of Microsoft Corporation. Google Maps is a trademark of Google Incorporated.
Pictometry Intelligent Images is a registered trademark of Pictometry International Corporation.
Other brands and product names are trademarks of their respective owners.
GeoMedia SQL Server Spatial - User Guide
Contents
Introduction .................................................................................................................................................. 5

Delivery and Connection ............................................................................................................................ 5
      Prerequisites ........................................................................................................................................... 5
      Connections ............................................................................................................................................ 5
      Password Persistence ............................................................................................................................ 6
      Permissions............................................................................................................................................. 6
      SQL Server Warehouse Requirements .................................................................................................. 7

Data Storage and Type Matching ............................................................................................................... 9
      Geometry Storage ................................................................................................................................... 9
      GeoMedia's Binary Geometry to Native Geometry Type Matching ...................................................... 11
      SQL Server to GeoMedia Data Type Matching .................................................................................... 14
      GeoMedia to SQL Server Data Type Matching .................................................................................... 15

GeoMedia Metadata Requirements .......................................................................................................... 16
      Scalar Functions ................................................................................................................................... 17
      AttributeProperties Table ...................................................................................................................... 18
      FieldLookup Table ................................................................................................................................ 19
      GAliasTable........................................................................................................................................... 19
      GCoordSystem Table ........................................................................................................................... 20

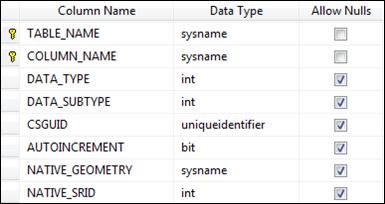

      GeometryProperties Table .................................................................................................................... 21
      GFeatures Table ................................................................................................................................... 22
      GFieldMapping Table ............................................................................................................................ 23
      GIndexColumns Table .......................................................................................................................... 24
      GParameters Table ............................................................................................................................... 25
      GPickLists Table ................................................................................................................................... 27
      GQueue Table....................................................................................................................................... 29
      ModifiedTables ...................................................................................................................................... 29
      ModificationLog Table ........................................................................................................................... 29
      Data Server Required Triggers in SQL Server Spatial ......................................................................... 34
      SQL Server Spatial Indexing ................................................................................................................. 35

Working with SQL Server Spatial ............................................................................................................ 37
      Using Existing Native Spatial Data ....................................................................................................... 38
      Importing Spatial Data .......................................................................................................................... 39
      Existing Standard SQL Server Data ..................................................................................................... 40
      Feature Class Definition ........................................................................................................................ 40
      Undo/Redo ............................................................................................................................................ 41
      Default Values ....................................................................................................................................... 41
      Spatial Filtering ..................................................................................................................................... 41
      Views and Join Views ........................................................................................................................... 42

GeoMedia SQL Server Spatial User Guide                                                                                                                         3
Contents

Database Utilities ....................................................................................................................................... 43

Exporting to SQL Server ........................................................................................................................... 45

Technical Support and Information ......................................................................................................... 49
      Self-Help Support Tools ........................................................................................................................ 49
      Phone Numbers .................................................................................................................................... 49
      Other Links ............................................................................................................................................ 51

Index ........................................................................................................................................................... 53

4                                                                                                   GeoMedia SQL Server Spatial User Guide
SECTION 1

Introduction
       The SQL Server Spatial data server is an add-on component for GeoMedia Professional that
       makes it easier to connect to Microsoft’s Sequel Server (SQL Server 2008 or later) databases
       that use native spatial geometry storage. This allows GeoMedia applications to use native
       SQL Server Spatial databases as geospatial warehouses. Once installed, the data server is
       accessed through GeoMedia Professional's Warehouse > New Connection command.

Delivery and Connection

Prerequisites
       SQL Server connections do not require client software. The SQL Server Spatial data server will
       be installed whether SQL Server is present or not. Connections can be made to SQL Server
       installations that are configured as case-sensitive or case-insensitive. Both Windows
       authentication and SQL Server authentication are supported for user accounts. A SQL Server
       database must already exist and must have the required metadata tables before a SQL Server
       connection can be made. The data server has full read-write capability, but the ability to
       access and edit database objects is controlled by the privileges on the login account used for
       the database connection.

Connections
       GeoMedia applications require specific metadata tables to exist in the SQL Server database
       before a connection can be made. This metadata is created using GeoMedia Professional's
       Database Utilities or during the bulk import of data from GeoMedia Professional’s Export to
       SQL Server command. The metadata used by the SQL Server spatial data server is different
       from the metadata used by the standard SQL Server data server, and they cannot be used
       interchangeably.
       See the GeoMedia Metadata Requirements section of this document for a list of the required
       tables.
       To make a connection to SQL Server, provide a valid server name, and then a valid username
       and password. Any databases the specified user has privilege to see will appear in the

GeoMedia SQL Server Spatial User Guide                                                                5
Delivery and Connection

         drop-down database list. SQL Server has two modes for validating users:      Windows domain
         authentication and SQL Server authentication.
         If the SQL Server connection is set to use Windows authentication (the default), your domain
         login account will need to be added to SQL Server by a database administrator and appropriate
         privileges will need to be granted on the databases you want to access. On connection, you
         will only need to supply the server name and the database name.
         If you are using SQL Server authentication, you will need to have a valid SQL Server user
         account and password as well as the appropriate privileges on the database you want to
         connect to.

Password Persistence
         When using SQL Server authentication, GeoMedia stores the SQL Server connection password
         in the GeoWorkspace. This is meant as a convenience and allows users to open existing
         GeoWorkspaces containing SQL Server connections without having to re-enter connection
         passwords. However, this is a drawback to those users wanting higher levels of security. If
         you do not want the passwords to be persisted in the GeoWorkspace, you must use domain
         authentication. Domain authenticated connections do not store any user or password
         information in the GeoWorkspace and have the added benefit of not prompting you to
         re-enter passwords.

Permissions
         In SQL Server warehouses, access to database objects is controlled by the object’s owner
         through the use of permissions. GeoMedia requires all objects in your SQL Server database to
         be in the DBO schema. Objects that are not owned by DBO will not be accessible or visible in
         GeoMedia except by the user who created them.
         When creating database objects using GeoMedia Professional’s Feature Class Definition
         command, the user account must be assigned the db_owner role. For database objects
         created outside of GeoMedia Professional, only a user account with the role db_owner will
         ensure that the resulting objects are in the DBO schema.
         SQL server users who need to be restricted to read-only access should be assigned the
         db_datareader role, and users who need read-write access should be assigned the
         db_datawriter role. All other specific SQL Server privileges are honored as long as the DBO
         ownership criterion is met when creating database objects.

6                                                               GeoMedia SQL Server Spatial User Guide
Delivery and Connection

       There are also four scalar functions that are required for any access to native spatial data
       through GeoMedia. Execute privileges are required on these four functions for any user who
       does not have the db_owner role. See the Scalar Functions section for more information.

SQL Server Warehouse Requirements
       Connections to SQL Server spatial warehouses have several restrictions and requirements that
       must be adhered to. Violation of any of these requirements may lead to a connection failure
       or the inability to load data from the connection. These connection requirements and
       restrictions are listed below:
          All geometries are stored in 3 dimensions; 2 dimensional geometries are not supported.
          All non-system SQL Server database objects must be owned by DBO.        Users who create
           objects in the database must have the db_owner role.
          Names of tables, views, indexes, and fields are always expressed in their defined cases.
           The server will preserve the case of identifiers but will be case-insensitive on comparisons.
                   Comparisons on data values will be case-sensitive, so caution is advised when
           identifier names are stored in the database.
          A local SQL Server client is not required; however, client-side administrative tools are
           required when importing data generated by the Export to SQL Server command. The
           server drop-down list on the New Connection dialog box is only populated when SQL
           Server agents are active.
          Do not use SQL Server’s TIMESTAMP data type. This data type is not related to date/time
           functions and is not supported. A list of supported data types is presented in the SQL
           Server to GeoMedia Data Type Matching section. Data types that do not appear in this
           list are not supported and are generally ignored by the data server.
          All DML operations (inserts, updates, and deletes) will require a clustered primary key.
           Both multi-column and character-based primary keys are allowed but are not
           recommended for insert operations as the user will need to manually enter the appropriate
           key value. For the best results and the best performance, use an integer-based
           auto-increment (identity) primary key column.
          Views are editable as long as they are key preserved and have the appropriate metadata
           entries in the GIndexColumns table. Any column in the view that is both unique and not
           null can act as the pseudo primary key. Even when key preserved, DML operations on
           join-views will require the use of instead of triggers.

GeoMedia SQL Server Spatial User Guide                                                                 7
Delivery and Connection

            GeoMedia metadata must be present before making a connection to the database. The
             required metadata can be created using GeoMedia Professional's Database Utilities or
             using the metadata script created by the Export to SQL Server command.
            Metadata entries must exist for all tables and views for them to be visible in the GeoMedia
             environment. Database Utilities can be used to make the metadata assignments.

8                                                              GeoMedia SQL Server Spatial User Guide
Data Storage and Type Matching

Data Storage and Type Matching
Geometry Storage
       The SQL Server Spatial data server uses two storage columns: one column is used to store the
       SQL Server's native spatial data types (GEOMETRY or GEOGRAPHY); the second one is a binary
       column (varbinary(max)) storing the GDO (GeoMedia Data Object - GeoMedia's native binary
       storage format) geometry blob used for unsupported geometries (for example, arcs, oriented
       points, text, and raster).
       The default native storage data type is GEOMETRY because most data is assumed to be
       projected. The GEOGRAPHY data type is fully supported as well but will require the use of an
       EPSG spatial reference system identifier (SRID). For geographic data, each feature must fit
       inside a single hemisphere. Objects larger than a single hemisphere are not supported and
       may throw an argument exception. Geographic spatial filter areas must also fit inside a single
       hemisphere.
       The default geometry type used by GeoMedia Professional's Feature Class Definition command
       (or any other GeoMedia command that creates a table) is determined by the
       TypeForNativeGeometryStorage parameter in the GParameters metadata.
       The default spatial reference system identifier (SRID) is 0 because that is what SQL Server
       expects for GEOMETRY data types. SQL Server does not store the EPSG SRID's for projected
       data, and a NULL SRID is not allowed. For GEOGRAPHY data types, a valid SRID is required,
       and it must be one of the EPSG SRIDs currently stored in SQL Server's
       sys.spatial_reference_systems table. The default SRID used by GeoMedia Professional's
       Feature Class Definition command (or any other GeoMedia command that creates a table) is
       determined by the DefaultNativeGeometrySrid parameter in the GParameters metadata table.
       Every native spatial geometry column must have a corresponding GeoMedia binary column.
       If the table is created using Feature Class Definition, the following columns are present in the
       base table for the feature:

GeoMedia SQL Server Spatial User Guide                                                                    9
Data Storage and Type Matching

      Name                            Data Type                     Description

                varbinary(MAX)                The binary GDO geometry
                                                                    column.
Data Storage and Type Matching

       manually inserted for each table using Database Utilities before GeoMedia recognizes these as
       feature classes.
               The use of _SPA is just a naming convention used by GeoMedia applications; you do
       not need to use this naming convention if you are creating or modifying tables outside of
       GeoMedia applications, as long as the metadata reflects the association between the GDO
       geometry and the native geometry column.

GeoMedia's Binary Geometry to Native Geometry
Type Matching
       To write geometric data to SQL Server, GeoMedia’s SQL Server Spatial data server converts
       GeoMedia native GDO geometry format to SQL Server native spatial format using the
       following:

       GeoMedia Geometry Type       SQL Server              GDO column         Native column
                                    Geometry Type           content            content
       PointGeometry                POINT (x y z)                              Exact point

       OrientedPointGeometry        POINT (x y z)           Full GDO           Exact point, no
                                                                               orientation

       TextPointGeometry            POINT (x y z)           Full GDO           Point origin

       LineGeometry                 LINESTRING(             Full GDO           Two-point linestring
                                    x1 y1 z1,
                                    x2 y2 z2)

       PolylineGeometry             LINESTRING(                                N-point linestring
                                    x1 y1 z1,
                                    …,
                                    xN yN zN)

       ArcGeometry                  LINESTRING(             Full GDO           Stroked N-point
                                    x1 y1 z1,                                  linestring
                                    …,
                                    xN yN zN)

GeoMedia SQL Server Spatial User Guide                                                              11
Data Storage and Type Matching

      GeoMedia Geometry Type      SQL Server       GDO column         Native column
                                  Geometry Type    content            content
      CompositePolylineGeometry MULTILINESTRING(   Full GDO, even     Composite
                                  (                when no member     members need to
                                                   is approximated,   be approximated
                                  x11 y11 z11,
                                                   in order to        (like arcs) in a
                                  …,
                                                   recreate           multiline string;
                                  xN1 yN1 zN1      composite.         otherwise, exact
                                  ),                                  multiline string.
                                  …,
                                  (x1M y1M z1M,
                                  …,
                                  xNM yNM zNM
                                  ))

      PolygonGeometry             POLYGON(                            Exact polygon
                                  (
                                  x1 y1 z1,
                                  …,
                                  xN yN zN
                                  ))

      CompositePolygonGeometry MULTILINESTRING(    Full GDO, even     Composite
                                  (                when no member     members need to
                                                   is approximated,   be approximated
                                  x11 y11 z11,
                                                   in order to        (like arcs) in a closed
                                  …,
                                                   recreate           multiline string;
                                  xN1 yN1 zN1      composite.         otherwise. exact
                                  ),                                  closed multiline
                                  …,                                  string.
                                  (x1M y1M z1M,
                                  …,
                                  xNM yNM zNM
                                  ))

12                                                 GeoMedia SQL Server Spatial User Guide
Data Storage and Type Matching

       GeoMedia Geometry Type      SQL Server              GDO column             Native column
                                   Geometry Type           content                content
       BoundaryGeometry            POLYGON(                Full GDO if any of     Composite
                                   (                       the members            members need to
                                                           (exterior, interior)   be approximated
                                   x1_int y1_int z1_int,
                                                           cannot be              (like arcs) in a
                                   …,
                                                           represented fully      polygon string;
                                   xN_int yN_int zN_int    by native type;        otherwise, exact
                                   ),                      otherwise, this        polygon string.
                                   (                       column will be
                                                           null.
                                   x11_ext y11_ext
                                   z11_ext,
                                   …,
                                   xN1_ext yN1_ext
                                   zN1_ext)
                                   ),
                                   …,
                                   (
                                   x11M_ext y11M_ext
                                   z11M_ext,
                                   …,
                                   xN1M_ext yN1M_ext
                                   zN1M_ext)
                                   ))

       RasterGeometry              POLYGON (               Full GDO               Exact polygon of the
                                   x1 y1 z1,                                      raster footprint.
                                   x2 y2 z2,
                                   x3 y3 z3,
                                   x4 y4 z4,
                                   x1 y1 z1)

       GeometryCollection          MULTPOINT for point     Full GDO if any of     A collection of exact
                                                           the members            representations or

GeoMedia SQL Server Spatial User Guide                                                               13
Data Storage and Type Matching

      GeoMedia Geometry Type       SQL Server               GDO column        Native column
                                   Geometry Type            content           content
                                   geometries,         (exterior, interior)   approximations,
                                   MULTILINESTRING for cannot be              according to the
                                   line geometries,    represented fully      rules established
                                                       by native type;        above, for each GDO
                                   MULTIPOLYGON for
                                                       otherwise, this        collection member.
                                   area geometries,
                                                       column will be
                                   GEOMETRYCOLLECTIO
                                                       NULL.
                                   N when mixed

SQL Server to GeoMedia Data Type Matching
      To use data from SQL Server, GeoMedia’s SQL Server Spatial data server converts SQL Server
      data types to GeoMedia data types. The following table shows how the SQL Server data
      types are mapped to the GeoMedia types. Any SQL Server data types missing from this list
      are considered unsupported and are ignored.

      SQL Server Data Type      GeoMedia Data Type
      binary                    LongBinary
      varbinary

      bit                       Boolean

      char(size)                Text if size = 6 and p < 11
        p is precision          Double for all other cases.
        s is scale

      float                     Double

14                                                          GeoMedia SQL Server Spatial User Guide
Data Storage and Type Matching

       SQL Server Data Type      GeoMedia Data Type
       binary                    LongBinary
       varbinary

       int                       Long

       money                     Currency

       real                      Single

       smallint                  Integer

       tinyint                   Byte

       uniqueidentifier          GUID

GeoMedia to SQL Server Data Type Matching
       The following table identifies the mapping used when converting from GeoMedia data types to
       SQL Server data types and whether specific metadata is required for the mapping:

       GeoMedia Data Type       SQL Server Data Type      Metadata Required?
       Boolean                  bit                       No

       Byte                     tinyint                   No

       Integer                  smallint                  Yes for autonumber

       Long                     int                       No

       Single                   real                      No

       Double                   float                     No

       Currency                 money                     No

       Date                     datetime                  No

       Text                     nvarchar                  No

       LongBinary               varbinary                 No

       Memo                     ntext                     No

       GUID                     uniqueidentifier          No

GeoMedia SQL Server Spatial User Guide                                                         15
GeoMedia Metadata Requirements

GeoMedia Metadata Requirements
      GeoMedia applications require specific metadata objects, and these must exist in the SQL
      Server database before a connection can occur. GeoMedia's metadata tables contain
      information about both the attribute and geometry tables stored in the database. The
      metadata functions control the follow of geometry data to and from GeoMedia applications.
      The following table lists the required metadata and its object type.

      GeoMedia Metadata Objects        Type
      AttributeProperties              Table
      FieldLookup                      Table
      GAliasTable                      Table
      GCoordSystem                     Table
      GeometryProperties               Table
      GFeatures                        Table
      GFieldMapping                    Table
      GIndexColumns                    Table
      GParameters                      Table
      GPickLists                       Table
      GQueue                           Table
      GTileIndexes                     Table
      ModifiedTables                   View
      ModificationLog                  Table

      Binary2SqlGeography              Function

      Binary2SqlGeometry               Function

      SqlGeography2Binary              Function

      SqlGeometry2Binary               Function

16                                                        GeoMedia SQL Server Spatial User Guide
GeoMedia Metadata Requirements

       To create GeoMedia's required metadata objects, you must use one of the following methods:
          Database Utilities – Use Database Utilities from the GeoMedia Professional program
           group. Enter the server name and login as the database owner (or administrator).
           When connected, select the Create Metadata Tables command. This is the preferred
           method and is also the method to use when updating the metadata objects as new releases
           become available.
          Export to SQL Server – You can also create the required metadata tables during bulk
           loading when using the import.bat command file created by the Export to SQL Server
           command in GeoMedia Professional by setting the sixth parameter to Y. The
           metadata.sql file generated by Export to SQL Server can also be run directly in SQL Server's
           Management Console.

Scalar Functions
       Internally, GeoMedia utilizes binary format for WKB data so it converts SQL Server's
       GEOMETRY/GEOGRAPHY data type to/from binary when reading/writing native geometry
       records. It uses the following four scalar functions to do the conversion:
          Binary2SqlGeography – Converts GeoMedia's binary data type to the native GEOGRAPHY
           data type when writing WKB geographic data.
          Binary2SqlGeometry – Converts GeoMedia's binary data type to the native GEOMETRY data
           type when writing WKB geometry data.
          SqlGeography2Binary – Converts native GEOGRAPHY data type to GeoMedia's binary data
           type when reading WKB data.
          SqlGeometry2Binary – Converts native GEOMETRY data type to GeoMedia's binary data
           type when reading WKB data.
       Execute privileges are required on these four functions for any login to a SQL Server database
       that does not have the db_owner role. These functions only convert the data type used to
       store the data; they do not convert data between WKB and GDO formats.

GeoMedia SQL Server Spatial User Guide                                                              17
GeoMedia Metadata Requirements

AttributeProperties Table
      The AttributeProperties metadata table describes the attribute types for the columns listed in
      the FieldLookup table. The common link between this table and FieldLookup is the IndexID
      column. The AttributeProperties table is defined, as follows:

         IndexID – Uniquely identifies the column being described.   The IndexID value comes from
          the FieldLookup table.
         IsKeyField – Determines whether a column is a primary key field.   The default value is 0 for
          FALSE. Use -1 (TRUE) if the column is a primary key.
         IsFieldDisplayable – Determines whether a column is displayed in GeoMedia Professional.
          The default value is -1 for TRUE. Use 0 (FALSE) to hide the column.
         FieldType – Determines how GeoMedia interprets the data type used in the column
          definition. These are based on the conversion from SQL Server to GeoMedia data types.
          The field type values correspond to the following:
          1 – Boolean                8 – Date
          2 – Byte                  10 – Text
          3 – Integer               11 – Binary
          4 – Long                  12 – Memo
          5 – Currency              15 – GUID
          6 – Single                32 – Spatial geometry
          7 – Double                33 – Graphic geometry
         FieldPrecision – Represents the number of decimal places displayed in GeoMedia
          Professional. For numeric data types, the default is 6. Usually, this is the same as the
          scale defined for the number field.

18                                                          GeoMedia SQL Server Spatial User Guide
GeoMedia Metadata Requirements

          FieldFormat – Determines the general format of the data being displayed.     Format types
           include General Number, Date/Time, and Currency.
          FieldDescription – A user-provided description of the column.

FieldLookup Table
       The FieldLookup metadata table provides a unique identifier (IndexID) for every column in
       every table/view in the database. The table definition is, as follows:

          IndexID – This key column contains a unique identifier for every column in every table in
           the database. It is populated using an identity increment.
          FeatureName – The table name.
          FieldName – Stores each column name for the associated feature name.
          The IndexID is used as a reference by other metadata tables like AttributeProperties and
           GeometryProperties, which are used to describe the columns and their contents.

GAliasTable
       The GAliasTable metadata table determines the names of the other metadata tables used by
       GeoMedia Professional. The GAliasTable is the only metadata table whose name is hard
       coded. This table must exist and cannot be modified or altered in any way. The table
       definition is, as follows:

          TableType – This key column contains an internal reference name used by GeoMedia
           applications.
          TableName – This is the table name used by the associated table type.    A table or view is
           required for each table type.

GeoMedia SQL Server Spatial User Guide                                                                 19
GeoMedia Metadata Requirements

GCoordSystem Table
      The GCoordSystem metadata table stores GeoMedia's coordinate system definitions. If this
      table is not present, no coordinate system transformation will occur, and the GeoWorkspace
      coordinate system will be used. This table is not user editable and is not listed due to the
      large number of columns and types of parameters required to define a coordinate system. This
      table should never be populated manually. There are three columns worth noting:
         Name – The name the user has assigned to this coordinate system. This is an optional
          parameter, but it should be used because it makes the coordinate system easier to identify,
          particularly if multiple coordinate systems are used in the database.
         Description – A user-provided description of the coordinate system.   This is optional, but
          like the name, it can also be useful.
         CSGUID – The CSGUID is a special value used to uniquely identify the coordinate system
          parameters. The CSGUID is used to associate a geometry object to a GeoMedia
          coordinate system. The CSGUID is also referenced in GeometryProperties and in
          GFieldMapping.
      Coordinate systems should be created using GeoMedia Professional's Define Coordinate
      System command. When a defined coordinate system is assigned to a feature class, the
      parameters that make up the coordinate system are inserted into the database table. Any
      feature class that uses the coordinate system is assigned the CSGUID for that coordinate
      system.
      Coordinate systems are defined on a per-feature-class basis. Each feature class can have its
      own coordinate system. If the database has a default coordinate system defined using the
      DefaultCoordinateSystem parameter in the GParameters table, feature classes created using
      the Feature Class Definition, Output to Feature Classes, or Export to SQL Server commands
      will automatically use the default. Outside of GeoMedia Professional, you will need to use
      the Database Utilities command, which is available in the GeoMedia Professional program
      group. If you have incorrectly assigned a coordinate system to a feature class, you can also
      use the Database Utilities to correct the assigned coordinate system.
      If you plan to use multiple coordinate systems in your SQL Server database, you need to assign
      one coordinate system to use as a default. Default coordinate systems can be assigned using
      Database Utilities or Feature Class Definition. Only one default coordinate system is allowed
      per database. The CSGUID of the default coordinate system is stored in the
      DefaultCoordinateSystem parameter in the GParameters metadata table.

20                                                          GeoMedia SQL Server Spatial User Guide
GeoMedia Metadata Requirements

       When digitizing in GeoMedia Professional, you should ensure that the GeoWorkspace
       coordinate system matches the coordinate system of the feature class into which you are
       digitizing. This is not always required, but depending on the coordinate transformation used,
       conversion errors can occur when the coordinates are written to the database. GeoMedia
       Professional will compare the GeoWorkspace coordinate system to the coordinate system of
       the feature you select for editing and will warn you if there is a mismatch. It will be up to the
       user to rectify or ignore the mismatch. One example where a difference is required is when
       editing geographic data in the polar regions; in this case, your workspace should be set to
       either north or south polar stereographic.

GeometryProperties Table
       The GeometryProperties metadata table stores the geometry type, primary geometry flag, and
       the coordinate system ID for geometry columns contained by feature classes. The common
       link between this table and FieldLookup is the IndexID column. The table definition is, as
       follows:

          IndexID – This key field links the information to the actual column defined in the
           FieldLookUp table.
          PrimaryGeometryFlag – A feature class can contain multiple geometry fields, but only one
           field is allowed to be primary. The primary geometry field is the field that allows for
           editing. A value of -1 means the geometry column is the primary geometry. All other
           geometry columns in the feature class should be assigned 0. Only one primary geometry
           field is allowed.
          GeometryType – This field determines how the data server maps the geometry:
           1 – Line                     2 – Area
           3 – AnySpatial               4 – Coverage
           5 – GraphicsText           10 – Point
          GCoordSystemGUID – This field contains the CSGUID from the GCoordSystem table.         It tells
           the data server what coordinate system is assigned to the geometry.

GeoMedia SQL Server Spatial User Guide                                                                21
GeoMedia Metadata Requirements

         FieldDescription – A user-provided description of the column.

GFeatures Table
      The GFeatures metadata table stores the table names of all user tables (feature classes).   By
      manipulating the tables listed here, you can make feature classes visible or invisible in
      GeoMedia. The table definition is, as follows:

         FeatureName – This key column contains the name of the table that will be exposed as a
          feature class in GeoMedia applications. This table is used by every command in
          GeoMedia Professional that lists the available feature classes, for example, Add Legend
          Entries.
         GeometryType – This field determines how the data server maps the geometry.
          1 – Line                                   2 – Area
          3 – AnySpatial                             4 – Coverage
          33 – GraphicsText                         10 – Point
          -1 – Attribute only (no geometry field)
         PrimaryGeometryFieldName – The name of the primary geometry column.
         FeatureDescription – A user-provided description of the column.

22                                                           GeoMedia SQL Server Spatial User Guide
GeoMedia Metadata Requirements

GFieldMapping Table
       The GFieldMapping metadata table is used to override various aspects of column definitions.
       Information stored here typically consists of the primary key column and the primary geometry
       with their associated GeoMedia data types, the coordinate system ID, and any assigned
       autonumber types. This table also defines the relationship between the native geometry
       storage column and the GeoMedia binary geometry column. The table definition is, as
       follows:

          TABLE_NAME – The name of the table.
          COLUMN_NAME – The column in the table that this information apples to.
          The TABLE_NAME/COLUMN_NAME combination makes up the primary key.
          DATA_TYPE – Determines how GeoMedia interprets the data type used in the column
           definition. Field type values include the following types (these are derived from the SQL
           Server to GeoMedia data type matching table):
           1 – Boolean                8 – Date
           2 – Byte                  10 – Text
           3 – Integer               11 – Binary
           4 – Long                  12 – Memo
           5 – Currency              15 – GUID
           6 – Single                32 – Spatial geometry
           7 – Double                33 – Graphic geometry
          DATA_SUBTYPE – Used when the DATA_TYPE is 32 or 33; the subtype determines the
           graphic type:

GeoMedia SQL Server Spatial User Guide                                                             23
GeoMedia Metadata Requirements

          1 – Line                   2 – Area
          3 – AnySpatial             4 – Coverage
          5 – GraphicsText         10 – Point
         CSGUID – The coordinate system assigned to the primary geometry field.
         AUTOINCREMENT – A Boolean field indicating that the field is set to auto-increment.   Use
          -1 for True; otherwise, the value is NULL.
         NATIVE_GEOMETRY – This column is used to match the native geometry column with its
          associated GeoMedia binary geometry column.
         NATIVE_SRID – This column contains the SRID of the native geometry field. Typically it
          will be 0 for GEOMETRY type fields. For GEOGRAPHY types, it should reflect an SRID value
          that is defined in SQL Server's sys.spatial_reference_systems table.

GIndexColumns Table
      The GIndexColumns metadata table is used to specify the column or columns in a view that can
      act as primary or unique key fields. This table is populated using Database Utilities. The
      table definition is, as follows:

         The primary key is a combination of the OBJECT_SCHEMA, OBJECT_NAME, INDEX_NAME,
          and COLUMN_NAME fields.
         OBJECT_SCHEMA – The owner of the view (the default is 'dbo').
         OBJECT_NAME – The name of the view.
         INDEX_NAME – The primary key index name from the base table.
         COLUMN_NAME – The name of a column in the view that will use the index in
          INDEX_NAME.

24                                                          GeoMedia SQL Server Spatial User Guide
GeoMedia Metadata Requirements

          INDEX_TYPE – The type of the index: ‘P’ for primary, ‘U’ for unique. The default value is
           ‘P’. If this field is missing, the first index will be assumed to be the primary index. If a
           view does not have a key defined in the GIndexColumns, it will be read-only, and no DML
           operations will be allowed.
          COLUMN_POSITION – This field is the order of the column within the index.      The default
           value is 1.
          BASE_OBJECT_SCHEMA – This field is the owner of the table (view) on which the view is
           based. If this field contains NULL (empty string), notification will not be supported. Only
           triggers can support notification in this case.
          BASE_OBJECT_NAME – This field is the name of the table (view) on which the view is based.
           If this field is missing or contains NULL (empty string), notification will not be supported.
           Only triggers can support notification in this case.
          BASE_COLUMN_NAME – This field is the name of the corresponding field of the base
           table/view. This field is used for name aliasing. If this field contains NULL (empty
           string), column name aliasing will not be supported.

GParameters Table
       The GParameters metadata table contains the default values for the parameters needed to
       create new tables using GeoMedia Professional as well as other miscellaneous information,
       such as the default warehouse coordinate system.

GeoMedia SQL Server Spatial User Guide                                                               25
GeoMedia Metadata Requirements

      This table contains two fields, GPARAMETER and GVALUE.       Currently, the following values are
      used by default:

      Never modify the values in the GPARAMETER column. The values used in the GVALUE column
      are user editable and these control how GeoMedia Professional creates tables in the database.
      These values mainly affect Feature Class Definition, but any GeoMedia Professional command
      that creates a table in the database will use these as defaults. Typically, you would edit the
      following:
         TypeForNativeGeometryStorage – This controls whether tables will be created using the
          GEOMETRY or the GEOGRAPHY data type. If you are using projected data, use
          GEOMETRY. If your data is GPS or longitude/latitude based, use GEOGRAPHY.
         DefaultNativeStorageSrid – This assigns the default SRID to use. If the
          TypeForNativeGeometryStorage is set to GEOMETRY, this value must be set to 0. If
          TypeForNativeGeometryStorage is set to GEOGRAPHY, this value must be set to an SRID
          that is currently supported by SQL Server. Use the following query for a list of the SRIDs
          currently supported by SQL Server:
          SELECT * FROM SYS.spatial_reference_systems
         DefaultCoordinateSystem – This parameter contains the CSGUID from the GCoordSystem
          table that corresponds to a GeoMedia coordinate system that is to be used as the default
          for all feature classes created through the GeoMedia Professional environment. If the
          TypeForNativeGeometryStorage is set to GEOGRAPHY, this value should correspond to the
          CSGUID of a coordinate system in the GCoordSystem table that matches the coordinate
          system for the SRID used for the DefaultNativeStorageSrid.

26                                                           GeoMedia SQL Server Spatial User Guide
GeoMedia Metadata Requirements

          XUpperBound, YUpperBound, XLowerBound, YLowerBound – These parameters control the
           MBR or bounding box range used by GeoMedia Professional when creating spatial indexes
           on geometry data types. Spatial indexes will perform better when the range used here
           more closely matches the range of the data indexed. Data that falls outside the range will
           not be indexed but will still be included in the results of the second pass filter, if applicable.
           Optimizing the spatial indexes for each feature class will improve performance and should
           be done at the database level. GeoMedia Professional will only create a default spatial
           index, and it may or may not be optimal.
       If you need to modify any of the other GPARAMETER/GVALUE pairs, you should first consult
       GeoMedia customer support.

GPickLists Table
       The GPickLists metadata table contains the Picklist assignments used by both the Properties
       dialog box and the data window in GeoMedia Professional. Also known as domain lists,
       Picklists allow for a predefined list of values to be used when updating attribute fields.
       GPickLists is defined, as follows:

          The primary key is a combination of the FeatureName and FieldName columns. These
           columns refer to the feature class and the specific attribute field for which the Picklist is to
           be used.
          PickListTableName – Specifies a table in the schema containing the PickList values.
          ValueFieldName and DescriptionFieldName – Refers to the name of the columns in the
           table containing the Picklist values.
          ValueFieldName – Specifies the field in the Picklist table that contains the values to be
           stored in the database. The data type of the field in the Picklist table specified here must
           match the data type of the attribute assigned in the FieldName.
          DescriptionFieldName – Specifies the field that contains Picklist descriptions to be displayed
           in the pop-up menu on the Properties dialog box.

GeoMedia SQL Server Spatial User Guide                                                                    27
GeoMedia Metadata Requirements

         The values stored in ValueFieldName and DescriptionFieldName could be the same when
          the displayed values are the same as the stored values.
         FilterClause – Is optional and may contain a SQL where clause that will be used to filter the
          records in the Picklist. The filter allows a single Picklist table to be used when creating
          multiple Picklists.
      Picklist tables can be any tables that contain the required information, including existing
      feature classes. You can implement a Picklist as a code list (using separate value and
      description entries) or as a domain list (when value and description entries are the same).
      Ranges are not supported.
      The Picklist metadata table can either be populated manually or by using the Picklist Manager
      utility. This utility is available from Intergraph Customer Support. For more information, visit
      the SG&I Support page (http://support.intergraph.com/).
      The following is an example of tables, columns, and values that could be defined for Picklists:
      GPickLists
      FEATURENAME      FIELDNAME     PICKLIST      VALUE            DESCRIPTION        FILTERCLAUSE
                                     TABLENAME     FIELDNAME        FIELDNAME
      BUILDINGS        NAME          PL_BUILDING   CODE_VALUE       VAL_DESCRIPTION    BLD_TYPE = 'NAME'

      BUILDINGS        STATE         PL_STATE      STATE_NAME       DESC

      BUILDINGS        TYPE          PL_BUILDING   CODE_VALUE       VAL_DESCRIPTION    BLD_TYPE = 'TYPE'

      PL_Building

      CodeValue         ValDescription               Bld_Type
      0                 MOTEL                        TYPE
      1                 MARRIOT                      NAME
      2                 HOLIDAY INN                  NAME
      3                 BED AND BREAKFAST            TYPE
      4                 DAYS INN                     NAME
      PL_State

      StateName         Desc
      Alabama           ALABAMA
      Arkansas          ARKANSAS

28                                                              GeoMedia SQL Server Spatial User Guide
GeoMedia Metadata Requirements

       StateName         Desc
       Colorado          COLORADO
       Texas             TEXAS
       Florida           FLORIDA

Queue Table
       The GQueue metadata table is used to store the static queues for the Queued Edit command.
       The columns in GQueue are populated through commands in GeoMedia Professional and are
       used solely by the Queued Edit command. This table is not user editable and should not be
       modified in any way.

ModifiedTables
       ModifiedTables is a join view that provides the object ID for each table/view. The view uses
       an inner join between the sysobjects table and the sysindexes table in conjunction with a union
       on GIndexColumns. The ModifiedTableID in this view provides the values for the
       ModifiedTableID used in the ModificationLog table. This value is used to identify the edited
       table in the ModificationLog table. This view is not user editable and should not be modified
       in any way.

ModificationLog Table
       The ModificationLog metadata table tracks modifications made from the GeoMedia
       environment for all feature classes in the connected schema. Specifically, it is used to track
       all inserts, updates, and changes made to tables/views listed in ModifiedTables. The
       ModifiedTableID is the common link between ModificationLog and ModifiedTables. The
       definition of the ModificationLog table is, as follows:

GeoMedia SQL Server Spatial User Guide                                                                  29
GeoMedia Metadata Requirements

         ModificationNumber – The auto-increment key filed for the table.
         Type – The type of edit that has occurred: 1 for insert, 2 for update, and 3 for delete.
         ModifiedTableID – The column identifier from ModifiedTables.
         KeyValue1 to KeyValue10 – These fields store the primary key column values for the edited
          row. If there is only one primary key column, only KeyValue1 is used. For multi-column
          primary keys, the values from each field that makes up the key are stored here. A primary
          key can be made up of a maximum of 10 columns.
         SESSIONID – Identifies the SQL Server session making the edit.     This field is populated
          automatically from a function-based default value.
         ModifiedDate – Identifies the date and time of the edit.    This field is populated
          automatically from a function-based default value.
      The ModificationLog table is part of the GeoMedia notification system. All edits made to
      feature classes within the connected SQL Server database are tracked in the ModificationLog
      table. Over time, this table can grow very large very quickly. Because the size of the
      ModificationLog table can negatively affect editing performance in GeoMedia applications, the
      table should be periodically truncated. However, do not clear this table while there are open
      GeoMedia sessions. The Clear Modification Log command in Database Utilities will truncate
      this table. You can also use the following SQL to clear this table:
          Truncate Table dbo.ModificationLog

30                                                             GeoMedia SQL Server Spatial User Guide
GeoMedia Metadata Requirements

       You could also set up a SQL Server job to do this automatically; just make sure it runs when
       there are no active GeoMedia sessions.
       The ModificationLog table is currently only configured to track modifications made through the
       GeoMedia environment. Modifications to the data made outside of GeoMedia do not update
       the ModificationLog table; thus, GeoMedia sessions are not notified of those changes.
       To solve this issue, you can create triggers that will automatically provide modification logging.
       To prevent insert events from happening twice, the triggers must have names that are
       recognized by the SQL Server data server:
          The trigger for insert must have a name that corresponds to the feature class name
           appended by GMTI.
          The trigger for update must have a name that corresponds to the feature class name
           appended by GMTU.
          The trigger for delete must have a name that corresponds to the feature class name
           appended by GMTD.
       For example, if the feature class is States, the triggers must have the name StatesGMTI,
       StatesGMTU, and StatesGMTD. This rule holds true regardless of whether the feature class is
       a table or a view. When the triggers are detected, GeoMedia will offload all the modification
       logging for the specific feature class to the trigger.
       Each trigger fires on the specific editing event and writes an entry into the ModificationLog
       table:
          Type is populated with the following constants:    1 - Insert, 2 – Update, or 3 – Delete.
          ModifiedTableID is populated with the object ID of the object for which the entry is
           created. This field comes from the ModifiedTables view.
          KeyValue1 to KeyValue10 are populated by converting the primary key value to
           nvarchar(255). For a single column primary key, only KeyValue1 is populated. If the
           primary key consists of multiple columns, the additional columns can be added to
           KeyValue2 through KeyValue10. Primary keys consisting of more than 10 columns are not
           supported.
       If the primary key is user editable (non-composite or does not contain an identity field), all
       modifications must create two entries, one for the old key value and one for the new key
       value.
       The following are examples of the insert, update, and delete triggers for a feature class (table)
       called States, whose primary key column is ID:

GeoMedia SQL Server Spatial User Guide                                                                  31
GeoMedia Metadata Requirements

      CREATE TRIGGER dbo.StatesGMTI ON dbo.States FOR INSERT AS
      DECLARE @TableID INT
      IF object_id('tempdb..#DisableModificationLog') IS null
            SELECT @TableID=ModifiedTableID FROM ModifiedTables
             WHERE TableName='States'
            INSERT INTO ModificationLog(Type,ModifiedTableID,KeyValue1)
                 SELECT 1, CONVERT(nvarchar(20),@TableID),CONVERT(nvarchar(255),
                 inserted.ID) FROM inserted
      GO
      --
      CREATE TRIGGER dbo.StatesGMTU ON dbo.States FOR UPDATE AS
      DECLARE @TableID INT
      IF object_id('tempdb..#DisableModificationLog') IS null
      SELECT @TableID=ModifiedTableID FROM ModifiedTables
       WHERE TableName='States'
      BEGIN
           IF update(ID)
             INSERT INTO ModificationLog(Type,ModifiedTableID,KeyValue1)
               SELECT 2, CONVERT(nvarchar(20),@TableID),
                           CONVERT(nvarchar(255),deleted.ID) FROM deleted
             INSERT INTO ModificationLog([Type],ModifiedTableID,KeyValue1)
               SELECT 2, CONVERT(nvarchar(20),@TableID),
                           CONVERT(nvarchar(255),inserted.ID) FROM inserted
       END
      GO
      --
      CREATE TRIGGER dbo.StatesGMTD ON dbo.States FOR DELETE AS
       DECLARE @TableID INT
       IF object_id('tempdb..#DisableModificationLog') IS null
             SELECT @TableID=ModifiedTableID FROM ModifiedTables
              WHERE TableName='States'
             INSERT INTO ModificationLog(Type,ModifiedTableID,KeyValue1)
               SELECT 3, CONVERT(nvarchar(20),@TableID),
                           CONVERT(nvarchar(255), deleted.ID) FROM deleted
      GO

32                                                 GeoMedia SQL Server Spatial User Guide
GeoMedia Metadata Requirements

       --
       To make this work with views, you need to add an entry to the base table trigger that handles
       the modification to the view. For example, if you have a simple view on States called
       STATES_VIEW, you could use the following trigger to handle notification for inserts:

       CREATE TRIGGER dbo.StatesGMTI ON dbo.States FOR INSERT AS
        DECLARE @TableID INT
        DECLARE @ViewID INT
        if object_id('tempdb..#DisableModificationLog') is null
            SELECT @TableID=ModifiedTableID FROM ModifiedTables
             WHERE TableName='States'
            INSERT INTO ModificationLog(Type,ModifiedTableID,KeyValue1)
              SELECT 1, convert(nvarchar(20),@TableID),
                            convert(nvarchar(255), inserted.ID) FROM inserted
              SELECT @TableID=ModifiedTableID FROM ModifiedTables
               WHERE TableName='States_View'
            INSERT INTO ModificationLog(Type, ModifiedTableID,KeyValue1)
              SELECT 1, convert(nvarchar(20),@ViewID),
                            convert(nvarchar(255), inserted.ID) FROM inserted
       GO

       The trigger in the above example will handle edit notification for both the table and the view,
       but GeoMedia will still attempt to write another notification for the view itself. To stop this
       second notification event, another trigger needs to be created on the view using the view
       name:
       CREATE TRIGGER dbo.States_View_GMTI ON dbo.States FOR INSERT AS
        DECLARE @TableID INT
        if object_id('tempdb..#DisableModificationLog') is null
             SELECT @TableID=ModifiedTableID FROM ModifiedTables
              WHERE TableName='States_View'
       GO

                The trigger itself is still on the base table States; it is only the name of the trigger that
       refers to the view. This is essentially a dummy trigger; it does not do anything other than
       telling GeoMedia not to write directly to the ModificationLog table.

GeoMedia SQL Server Spatial User Guide                                                                     33
GeoMedia Metadata Requirements

      When you edit through a view, it is the underlying base table that is actually edited, and in that
      case, a modification log trigger is required. This becomes more complicated as more views
      are added on the same base table. Every update to the base table should also update the
      ModificationLog table for every view that is dependent on the base table. For join views, you
      will need to take into account all the base tables and associated views. In the case of join
      views, most editing would be handled through instead of triggers. In this case, you could
      embed the insert into the ModificationLog table directly using the instead of trigger as long as
      the trigger name adheres to the rules listed above.

Data Server Required Triggers in SQL Server Spatial
      To maintain the relationship between the native geometry and GeoMedia's binary GDO
      geometry, an after-insert and an after-update trigger are required for every table. When a
      native geometry column is inserted/updated outside of GeoMedia, this trigger sets GeoMedia's
      binary GDO geometry to NULL. The next time the data is read by the data server, the binary
      GDO column value will be reconstructed from the native value. These triggers are
      automatically created for every feature class created by GeoMedia Professional. If you create
      your tables outside of the GeoMedia Professional environment, you will need to manually add
      these triggers. The general format for each of these triggers is shown below:
      CREATE TRIGGER __INS ON
      AFTER INSERT AS
      BEGIN
        SET NOCOUNT ON;
         IF EXISTS (SELECT NULL FROM INSERTED WHERE INSERTED. IS
      NULL
         AND INSERTED. IS NOT NULL)
         BEGIN
           RAISERROR (N'Unsupported. Cannot specify value for GDO column only,
                        native column value must also be provided.', 0, 1)
           ROLLBACK TRANSACTION
         END;
      END;
      GO

      CREATE TRIGGER __UPG
      AFTER UPDATE AS
      BEGIN
        SET NOCOUNT ON;

34                                                            GeoMedia SQL Server Spatial User Guide
You can also read
NEXT SLIDES ... Cancel
