AD FS v3 Deployment Guide UPDATED: 25 March 2021
AD FS v3
Copyright Notices
Copyright © 2002-2021 Kemp Technologies, Inc. All rights reserved. Kemp Technologies and the
Kemp Technologies logo are registered trademarks of Kemp Technologies, Inc.
Kemp Technologies, Inc. reserves all ownership rights for the LoadMaster and Kemp 360 product
line including software and documentation.
Used, under license, U.S. Patent Nos. 6,473,802, 6,374,300, 8,392,563, 8,103,770, 7,831,712, 7,606,912,
7,346,695, 7,287,084 and 6,970,933
kemp.ax 2 Copyright 2002-2021, Kemp Technologies, All Rights Reserved
AD FS v3
Table of Contents
1 Introduction 4
1.1 Document Purpose 4
1.2 Intended Audience 4
1.3 Related Firmware Version 4
2 Template 5
3 Load Balancing AD FS 6
3.1 Load Balancing Internal AD FS Servers 6
3.2 Load Balancing AD FS Proxy (WAP) Servers 7
3.3 Using Kemp LoadMaster to Proxy External Clients to AD FS Servers 10
4 Prerequisites 13
4.1 DNS 13
4.2 AD FS SSL Certificate Import on LoadMaster 13
5 LoadMaster Global Settings 15
5.1 Enable Subnet Originating Requests Globally 15
6 VS Configuration 16
6.1 Create a VS using a Template 16
6.1.1 AD FS Internal Farm VS Recommended API Settings (optional) 16
6.1.2 AD FS Proxy Farm VS Recommended API Settings (optional) 17
6.1.3 AD FS Kemp as Proxy VS Recommended API Settings (optional) 18
References 20
Last Updated Date 21
kemp.ax 3 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
1 Introduction
1 Introduction
Active Directory Federation Services (AD FS) is a Microsoft identity access solution. It was an
optional component of Microsoft Windows Server® 2003 R2. It is now built into Windows Server®
2008, Windows Server® 2012, Windows Server 2012 R2, Windows Server 2016, and Windows Server
2019. AD FS helps to establish trust relationships and reduces the need for provisioning and
managing user accounts. Its implementation provides clients (internal or external to the trusted
internal LAN) with simplified access to systems and applications relying on claims-based
authorization. AD FS also supports web Single-Sign-On (SSO) technologies to improve user
experience across multiple protected applications.
Trust relationships are used to project a user’s digital identity and access rights to trusted partners
and can be deployed in multiple organizations to facilitate business-to-business (B2B) transactions
between trusted partner organizations.
1.1 Document Purpose
This documentation is intended to provide guidance on how to configure Kemp LoadMaster
products to provide high availability for an AD FS 3.0 or AD FS 4.0 environment, based on Windows
Server 2012 R2, Windows Server 2016, or Windows Server 2019. This documentation is created using
a representative sample environment described later in the document. As this documentation is
not intended to cover every possible deployment scenario, it may not address unique setup or
requirements. The Kemp Support Team is always available to provide solutions for scenarios not
explicitly defined.
1.2 Intended Audience
It is assumed that the reader is a server/network administrator or a person otherwise familiar with
networking and general computer terminology and is familiar with AD FS technology.
1.3 Related Firmware Version
Published with LMOS version 7.2.48.4 LTS. This document has not required substantial changes
since 7.2.48.4 LTS. However, the content is in sync with the latest LoadMaster LTS firmware.
kemp.ax 4 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
2 Template
2 Template
Kemp has developed a template containing our recommended settings for this workload. You can
install this template to help create Virtual Services (VSs) because it automatically populates the
settings. You can use the template to easily create the required VSs with the recommended
settings. For some workloads, additional manual steps may be required such as assigning a
certificate or applying port following, these steps are covered in the document, if needed.
You can remove templates after use and this will not affect deployed services. If needed, you can
make changes to any of the VS settings after using the template.
Download released templates from the Templates section on the Kemp Documentation page.
For more information and steps on how to import and use templates, refer to the Virtual Services
and Templates, Feature Description on the Kemp Documentation page.
kemp.ax 5 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
3 Load Balancing AD FS
3 Load Balancing AD FS
The Kemp LoadMaster family of products provide high availability to AD FS and AD FS proxy farms
(WAP). AD FS proxy servers (Web Application Proxy(WAP)) provide termination of external traffic at
the DMZ and provide an additional layer of protection against external threats. AD FS proxy servers
also help internal AD FS servers clearly identify which authentication attempts are external. This is
achieved by inserting x-ms-proxy claims in AD FS requests.
AD FS administrators can configure advanced claim rules that allow granular control over user
authentication restrictions such as requiring users to be a part of a certain group or requiring users
to authenticate from certain IP networks. When such claims rules are configured on AD FS servers,
it becomes critical to identify if the user is trying to authenticate from an external or internal
location.
In deployments where select advanced claim rules such as IP network and trust levels for instance
are not in use, Kemp LoadMaster devices can be placed in the DMZ and can proxy authentication
requests to internal AD FS servers without requiring additional AD FS Proxy (WAP) servers. This can
help customers save on hardware, software, and management costs associated with maintaining
additional AD FS proxy servers.
3.1 Load Balancing Internal AD FS Servers
An AD FS server is responsible for issuance of claims and user authentication. This server must be
able to connect to a Domain Controller. It authenticates users from multiple domains by using
Windows Trust.
In our example deployment, “Kemp Demo” has deployed AD FS 3.0 in their environment to
facilitate claims-based authentication for their Microsoft Exchange 2013 infrastructure and allow
for SSO capabilities across applications. The deployment contains the following:
l Two AD FS 3.0 servers
l Two Microsoft Exchange 2013 Multi-Role servers
l A Kemp LoadMaster High Availability (HA) cluster
A name space of owa.Kempdemo.com is used for access to the Microsoft Exchange environment. A
name space of adfs.Kempdemo.com is used for access to the AD FS environment.
kemp.ax 6 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
3 Load Balancing AD FS

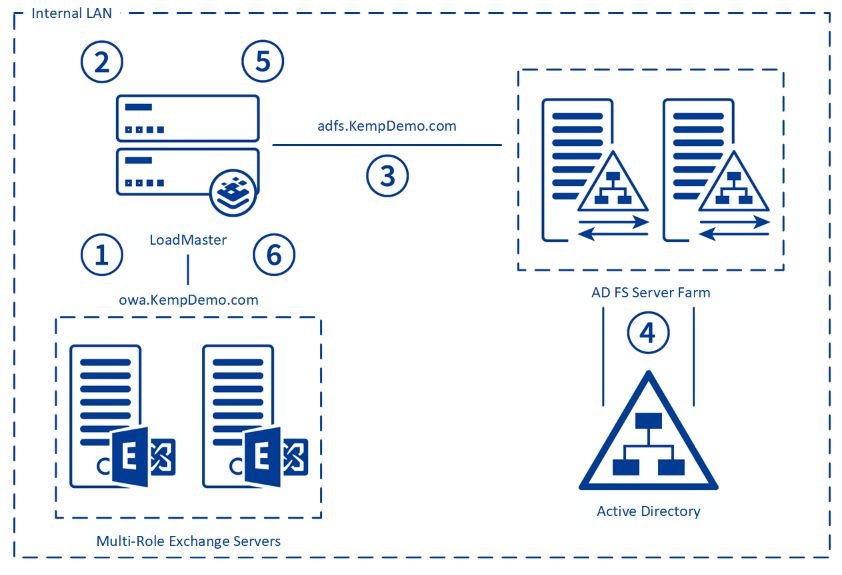

1. The client accesses the workload at https://owa.kempdemo.com/owa.
2. The client is directed to the AD FS URL, https://adfs.kempdemo.com, which is a VS on
Kemp LoadMasters for internal AD FS.
3. The Kemp LoadMaster sends traffic to a healthy AD FS server based on scheduling
method.
4. The AD FS server authenticates the user against Active Directory.
5. The AD FS server returns a SAML token to the client through the LoadMaster for
authentication.
6. The client connects to Microsoft Exchange 2016 with a SAML token for authentication
and accesses the workload.
3.2 Load Balancing AD FS Proxy (WAP) Servers
An AD FS proxy server (WAP) protects the AD FS server from internet-based threats. The WAP server
also authenticates users from the internet.
kemp.ax 7 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
3 Load Balancing AD FS
Terminating SSL between the WAP and AD FS server is not
supported. Terminating SSL breaks the trust between the WAP
and AD FS.
In our example deployment, “Kemp Demo” has deployed AD FS 3.0 in their environment to
facilitate claims-based authentication for their Microsoft Exchange 2013 infrastructure and allow
for SSO capabilities across applications. A pair of AD FS Proxy (WAP) servers are added in the DMZ
to provide additional protection and security for clients accessing the application from the
internet. External clients connect to the AD FS Proxy (WAP) servers and the AD FS Proxy (WAP)
server proxy that connection through the internal Kemp LoadMaster to a healthy AD FS server. The
deployment contains the following:
l Two AD FS 3.0 servers
l Two AD FS 3.0 Proxy servers (WAP)
l Two Microsoft Exchange 2013 Multi-Role servers
l Kemp LoadMaster HA cluster on the internal LAN
l Kemp LoadMaster HA cluster in the DMZ
A name space of owa.Kempdemo.com is used for access to the Microsoft Exchange environment. A
name space of adfs.Kempdemo.com is used for access to the AD FS and the AD FS Proxy (WAP)
farms. Split Domain Name System (DNS) is implemented, which allows these name spaces to be
used both internally and externally in the environment.
kemp.ax 8 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
3 Load Balancing AD FS
1. The client accesses the workload at https://owa.kempdemo.com/owa.
2. The client is directed to the AD FS URL, https://adfs.kempdemo.com, which is a Virtual
Service on the DMZ Kemp LoadMasters for AD FS Proxies (WAP).
3. The Kemp LoadMaster sends traffic to a healthy AD FS Proxy (WAP) server based on the
scheduling method.
kemp.ax 9 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
3 Load Balancing AD FS
4. The AD FS Proxy (WAP) server proxies the connection to the AD FS servers published
through the internal Kemp LoadMasters.
5. The Kemp LoadMaster sends traffic to the healthy AD FS server based on the scheduling
method.
6. The AD FS server authenticates the user against Active Directory.
7. The AD FS server returns a SAML token to the AD FS Proxy (WAP).
8. The AD FS Proxy (WAP) returns a SAML token to the client for authentication.
9. The client connects to Microsoft Exchange 2013 with a SAML token for authentication
and accesses the workload.
3.3 Using Kemp LoadMaster to Proxy External Clients to AD FS
Servers
In deployments where select advanced claim rules such as IP network and trust levels for instance
are not in use, Kemp LoadMaster devices can be placed in the DMZ and can proxy authentication
requests to internal AD FS servers without requiring additional AD FS proxy (WAP) servers. This can
help customers save on hardware, software, and management costs associated with maintaining
additional AD FS proxy servers.
If you are using advanced claims with the AD FS infrastructure,
the LoadMaster can be used alongside the AD FS Proxy Farm
but cannot be used as a replacement.
In our example deployment, “Kemp Demo” has deployed AD FS 3.0 in their environment to
facilitate claims-based authentication for their Microsoft Exchange 2013 infrastructure and allow
for SSO capabilities across applications. A pair of Kemp LoadMasters are added in the DMZ to
provide additional protection and security for clients accessing the application from the internet.
External clients will connect to the Kemp LoadMasters and the Kemp LoadMasters will proxy that
connection directly to a healthy AD FS server. The deployment contains the following:
l Two AD FS 3.0 servers
l Two Exchange 2013 Multi-Role servers
l Kemp LoadMaster HA cluster “acting” as the AD FS Proxy (WAP)
l Kemp LoadMaster HA cluster for internal traffic (optional)
kemp.ax 10 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
3 Load Balancing AD FS
A name space of owa.Kempdemo.com is used for access to the Microsoft Exchange environment. A
name space of adfs.Kempdemo.com is used for access to the AD FS environment. Split DNS is
implemented, which allows these name spaces to be used both internally and externally in the
environment.

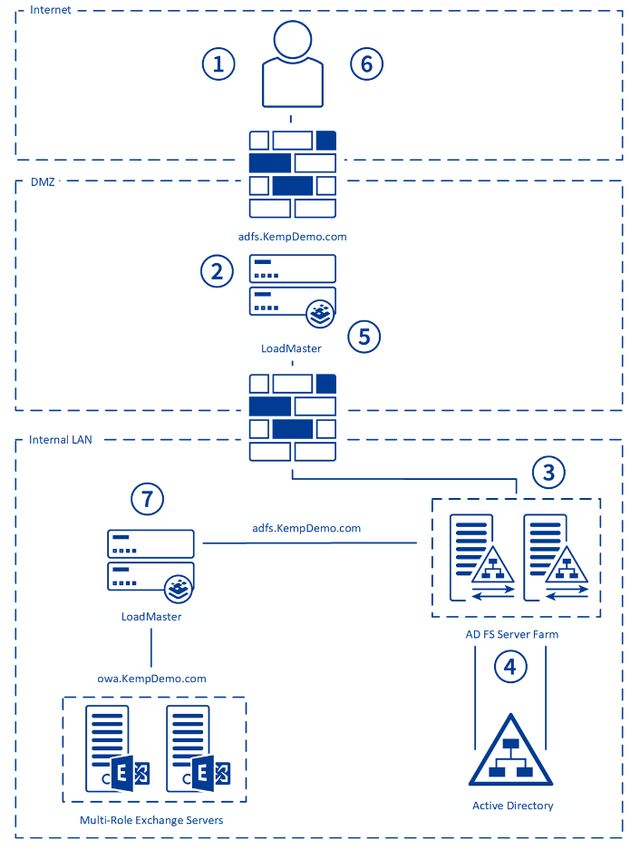

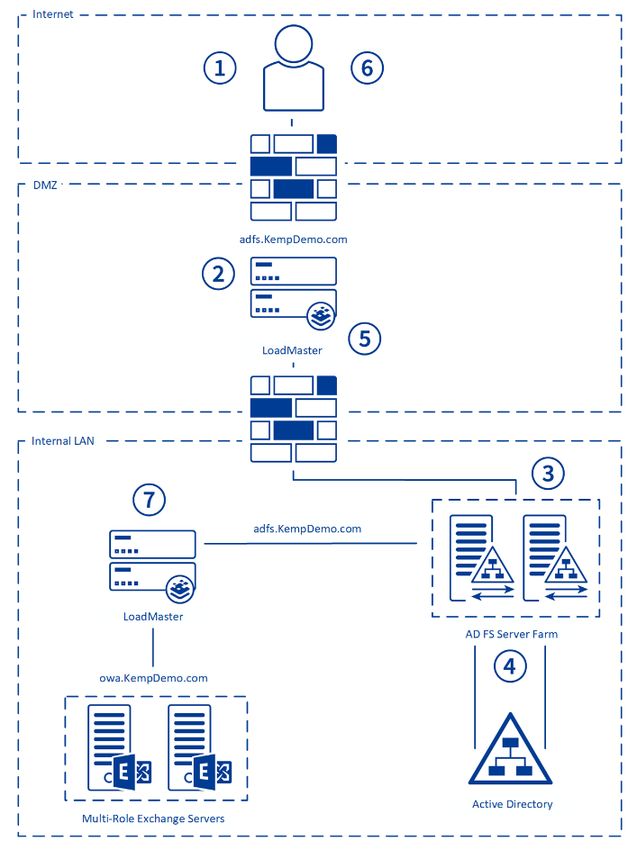

1. The external client accesses the workloadat https://owa.kempdemo.com/owa.
kemp.ax 11 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
3 Load Balancing AD FS
2. The client is directed to the AD FS url, https://adfs.kempdemo.com, which is a VS on the
DMZ Kemp LoadMasters “acting” as the AD FS Proxy (WAP).
3. The Kemp LoadMaster sends traffic to the healthy AD FS server based on the scheduling
method.
4. The AD FS server authenticates the user against Active Directory.
5. The AD FS server returns a SAML token to the Kemp LoadMaster “acting” as the AD FS
Proxy (WAP).
6. The Kemp LoadMaster returns a SAML token to the client for authentication.
7. The client connects to Microsoft Exchange 2013 with a SAML token for authentication
and accesses the workload.
kemp.ax 12 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
4 Prerequisites
4 Prerequisites
There are some prerequisites to be aware of before deploying the Kemp LoadMaster with AD FS.
It is assumed that the AD FS 3.0 or AD FS 4.0 environment is already set up and the Kemp
LoadMaster is installed. We recommend reviewing the LoadMaster Web User Interface (WUI),
Configuration Guide.
At a minimum, the following actions should be completed:
l Implemented Active Directory, AD FS, DNS, WAP, and other Microsoft requirements
l Configured the application servers to support claims-based authentication
l Established access to the LoadMaster WUI
4.1 DNS
Access to the DNS used in the environment must be available. This is needed to set up name
resolution of the AD FS services to the VS IP addresses that will be configured on the Kemp
LoadMaster.
4.2 AD FS SSL Certificate Import on LoadMaster
The AD FS SSL certificate has to be imported into the LoadMaster before deployment if using Kemp
as a proxy. To import the certificate, follow the steps below:
1. Log in to the relevant Virtual Load Master (VLM).
2. In the main menu, click Certificates & Security and select SSL Certificates.
3. Click the Import Certificate button.
4. Click Choose File next to the Certificate File field.
kemp.ax 13 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
4 Prerequisites
5. Browse to and select the certificate file.
6. Click Open.
7. Browse to and select the Key File if needed.
8. Enter the Pass Phrase of the certificate.
9. Enter a name for the certificate in the Certificate Identifier field.
10. Click Save.
11. If it works, a success message is displayed. Click OK.
Despite the fact that clients establish a single TCP connection
with the AD FS server to request and receive a security token,
certain applications can suffer from multiple login redirections
if persistence is not enabled on the load balancer. For this
reason, a Layer 7 service is used, along with SSL reencryption,
to allow for the more intelligent forms of persistence that are
not available at Layer 4 or when SSL traffic is not terminated at
the LoadMaster.
kemp.ax 14 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
5 LoadMaster Global Settings
5 LoadMaster Global Settings
Before setting up the VSs, the following global settings should be configured to support the
workload.
5.1 Enable Subnet Originating Requests Globally
It is best practice to enable the Subnet Originating Requests option globally.
In a one-armed setup (where the Virtual Service and Real Servers are on the same network/subnet)
Subnet Originating Requests is usually not needed. However, enabling Subnet Originating Requests
should not affect the routing in a one-armed setup.
In a two-armed setup where the Virtual Service is on network/subnet A, for example, and the Real
Servers are on network B, Subnet Originating Requests should be enabled on LoadMasters with
firmware version 7.1-16 and above.
When Subnet Originating Requests is enabled, the Real Server sees traffic originating from
10.20.20.21 (LoadMaster eth1 address) and responds correctly in most scenarios.
With Subnet Originating Requests disabled, the Real Server sees traffic originating from 10.0.0.15
(LoadMaster Virtual Service address on eth0) and responds to eth0 which could cause asymmetric
routing.
When Subnet Originating Requests is enabled globally, it is automatically enabled on all Virtual
Services. If the Subnet Originating Requests option is disabled globally, you can choose whether to
enable Subnet Originating Requests on a per-Virtual Service basis.
To enable Subnet Originating Requests globally, follow the steps below:
1. In the main menu of the LoadMaster User Interface (UI), go to System Configuration >
Miscellaneous Options > Network Options.
2. Select the Subnet Originating Requests check box.
kemp.ax 15 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
6 VS Configuration
6 VS Configuration
This step-by-step set up of VS leverages the Kemp application template for Microsoft AD FS.
The table in each section outlines the settings configured by the application template. You can use
this information to manually configure VS or using the Kemp LoadMaster API and automation
tools.
6.1 Create a VS using a Template
To configure a VS using the application template, perform the following steps:
1. In the main menu of the LoadMaster WUI, go to Virtual Services > Add New.
2. Type a valid Virtual Address.
3. Select the appropriate template in the Use Template drop-down list.
4. Click Add this Virtual Service.
5. Required only for Kemp as Proxy: Expand the SSL Properties section.
6. Required only for TLS/SSL Offload and Reencrypt: Select the certificate to use from
Available Certificates and click the arrow (>) to move it to Assigned Certificates.
Do not enable SSL Acceleration on the AD FS Internal VS when
using the WAP role. The proxy server needs to present a
certificate of trust to the AD FS server.
7. Expand the Real Servers section.
8. Click Add New.
9. Type the Real Server Address.
10. Confirm that the correct port is entered.
11. Click Add This Real Server.
6.1.1 AD FS Internal Farm VS Recommended API Settings (optional)
This table outlines the API parameters and values set using the Kemp application template. You
can use these settings with scripts and automation tools.
kemp.ax 16 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
6 VS Configuration
API Parameter API Value
port 443
prot tcp
VStype http
SubnetOriginating 1
Persist src
PersistTimeout 3600
Schedule lc
CheckType https
CheckPort 443
CheckUse1.1 1
CheckUrl /FederationMetadata/2007-06/FederationMetadata.xml
CheckHost adfs.example.com
CheckUseGet 1
6.1.2 AD FS Proxy Farm VS Recommended API Settings (optional)
This table outlines the API parameters and values set using the Kemp application template. You
can use these settings with scripts and automation tools.
API Parameter API Value
port 443
prot tcp
VStype http
SubnetOriginating 1
Persist src
PersistTimeout 3600
Schedule lc
kemp.ax 17 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
6 VS Configuration
API Parameter API Value
CheckType https
CheckPort 443
CheckUse1.1 1
CheckUrl /FederationMetadata/2007-06/FederationMetadata.xml
CheckHost adfs.example.com
CheckUseGet 1
6.1.3 AD FS Kemp as Proxy VS Recommended API Settings (optional)
This table outlines the API parameters and values set using the Kemp application template. You
can use these settings with scripts and automation tools.
API Parameter API Value
port 443
prot tcp
VStype http
SubnetOriginating 1
Persist src
PersistTimeout 3600
Schedule lc
SSLAcceleration 1
SSLReencrypt 1
TLSType 3
CipherSet BestPractices
ReverseSNIHostname adfs.example.com
ExtraHdrKey x-ms-proxy
ExtraHdrValue KEMP
kemp.ax 18 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
6 VS Configuration
API Parameter API Value
CheckType https
CheckPort 443
CheckUse1.1 1
CheckUrl /FederationMetadata/2007-06/FederationMetadata.xml
CheckHost adfs.example.com
CheckUseGet 1
kemp.ax 19 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
References
References
Unless otherwise specified, the following documents can be found at
http://kemptechnologies.com/documentation.
ESP, Feature Description
LoadMaster Web User Interface (WUI), Configuration Guide
kemp.ax 20 Copyright 2002-2021, Kemp Technologies, All Rights ReservedAD FS v3
Last Updated Date
Last Updated Date
This document was last updated on 25 March 2021.
kemp.ax 21 Copyright 2002-2021, Kemp Technologies, All Rights ReservedYou can also read
